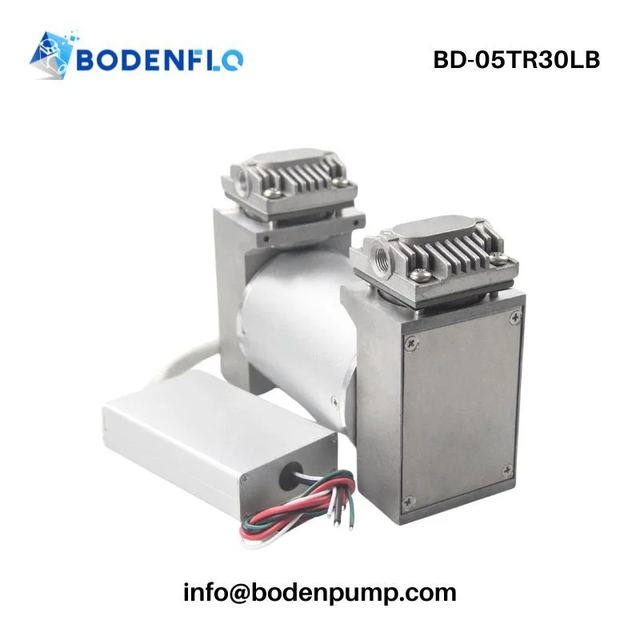

Swing Piston Pump 30 L/min 7 Bar Twin Head Micro Compressor BD-05TR30LB
Model BD-05TR30LB
Overview
Swing Piston Pump 30 L/min 7 Bar Twin Head Micro Compressor BD-05TR30LB supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 24 V DC; Max Flow 30 L/min; Max Vacuum -90 kPa; Max Pressure 7 bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 24 V DC |
|---|---|
| Max Flow | 30 L/min |
| Max Vacuum | -90 kPa |
| Max Pressure | 7 bar |
| Power | 130 W |
| Weight | 1.8 kg |
| Type | Double Head Air Pump |
| Structure | Twin-Head Swing Piston Pump |
| Voltage Range | 24 V DC |
| Motor Type | Brushless DC Motor |
| Max Load Current | 5.5 A |
| Lifetime | >10,000 h under rated operating conditions |
| Operating Ambient Temperature | -20°C to 60°C |
| Operating Medium Temperature | 5°C to 40°C |
| Pump Head | Aluminum Alloy |
| Piston Cup | PTFE |
| Valve | Stainless Steel |
| Operation | Oil-free, dry-running capable |
| Item | Customization Options |
| Branding | Private label or customer-specific marking |
| Application | High-flow gas sampling module |
