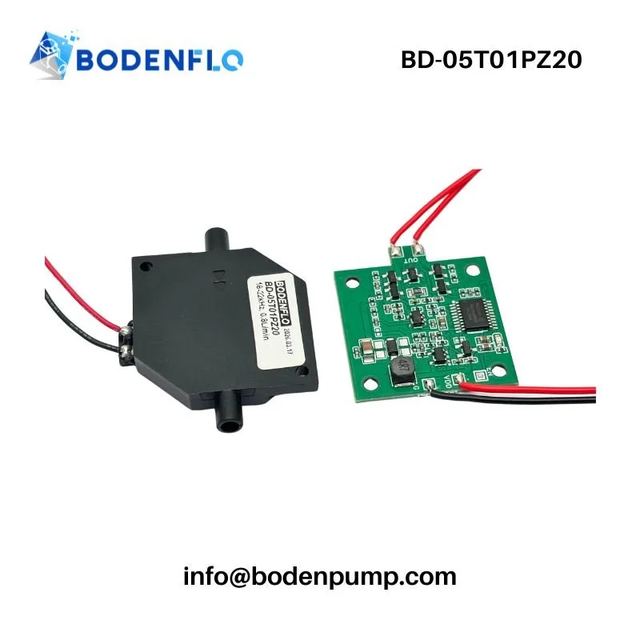

Piezo Micro Pump 0.8 L/min Low noise Miniature Piezoelectric Air Pump BD-05T01PZ20 BODENFLO
Model BD-05T01PZ20
Overview
Piezo Micro Pump 0.8 L/min Low noise Miniature Piezoelectric Air Pump BD-05T01PZ20 BODENFLO, from Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. Input voltage 60-70VPP, drive frequency 18-22 kHz and flow rate ≥0.8 L/min（ @ 28 VDC） are among the specifications published.
Technical specifications
| Input Voltage | 60-70VPP |
|---|---|
| Drive Frequency | 18-22 kHz |
| Flow Rate | ≥0.8 L/min（ @ 28 VDC） |
| Positive Static Pressure | ≥ 20 kPa |
| Negative Static Pressure | ≤-15kpa |
| Ambient Temperature Range | 5-50 °C |
| Flow Rate @ 28 VDC | ≥0.8 L/min |
| No-Load Flow Rate | 0.8 L/min |
| Static Pressure | ≥20 kPa |
| Customization Aspect | Available Options |
| Cable & Connector | OEM wiring harness |
| Product Label | OEM branding or model number |
