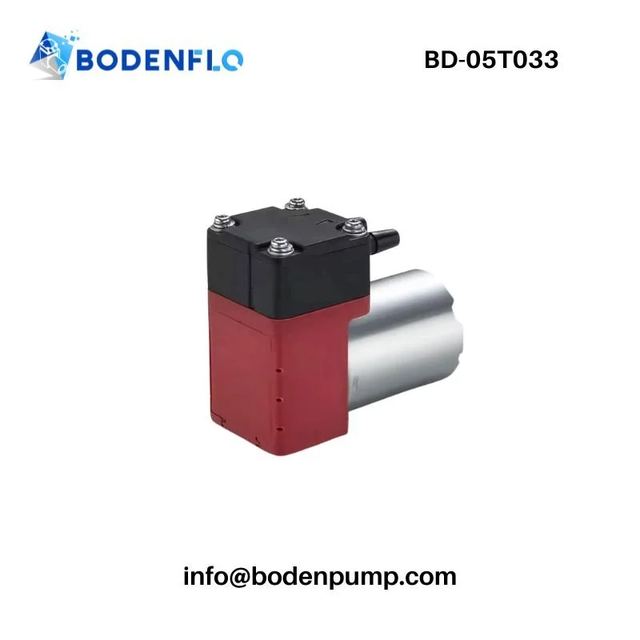

Air Sample Pump Stable Flow 12V/24V Diaphragm Air Pump BD-05T033
Model BD-05T033
Overview
Air Sample Pump Stable Flow 12V/24V Diaphragm Air Pump BD-05T033, listed by Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. The listing gives voltage 6V/12V/24V, max flow 2-3L/min and max vacuum –55 kPa.
Technical specifications
| Voltage | 6V/12V/24V |
|---|---|
| Max Flow | 2-3L/min |
| Max Vacuum | –55 kPa |
| Max Pressure | +90 kPa |
| Max Power | 1.6 W |
| Weight | 79g |
| Voltage Range | 6V / 12V / 24V |
| Maximum Flow | 2 – 3 L/min |
| Maximum Negative Pressure | –55 kPa |
| Maximum Positive Pressure | +90 kPa |
| Motor Type | Brushed DC Motor |
| IP Rating | IP00 / IP40 |
| Storage Temperature | –40 °C ~ 60 °C |
| Operating Environment | –20 °C ~ 45 °C |
| Diaphragm/Valve | EPDM (FKM optional) |
| Pump Head | PPS |
| Pump Body | Nylon |
| Dimensions | 50 × 24.5 × 41 mm |
| Expected Lifetime | 2,000 – 4,000 hours (brushed) |
| Component | Material / Description |
| Waterproof Rating | IP00/IP40 – Based on model variant |
| Motor Voltage | 6V / 12V / 24V |
| Diaphragm Material | EPDM (standard) / FKM (optional) |
| Mounting Bracket | Optional installation accessories |
