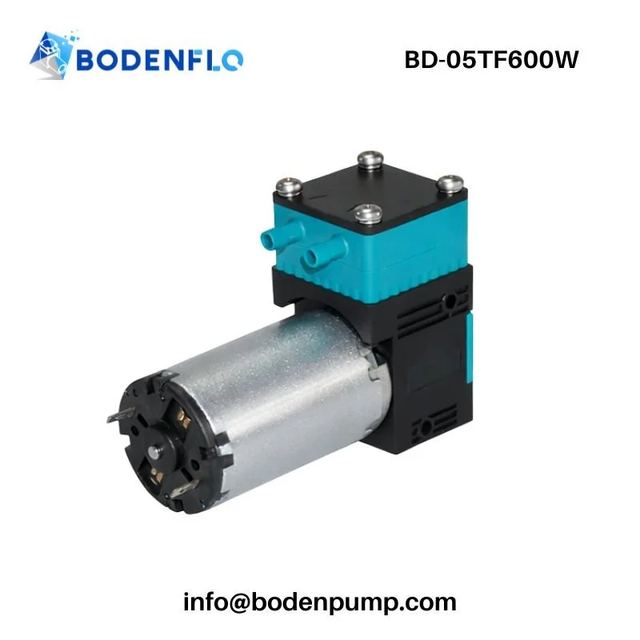

12V Liquid Pump 600mL/min 7W Wide Format Printer Pump BD-05TF600W BODENFLO
Model BD-05TF600W
Overview
12V Liquid Pump 600mL/min 7W Wide Format Printer Pump BD-05TF600W BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 6 / 12 / 24 V DC; Max Flow 600 mL/min (water), 4 L/min (gas); Max Vacuum -78 kPa; Max Pressure 2.5 bar (water), 1 bar (gas). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 6 / 12 / 24 V DC |
|---|---|
| Max Flow | 600 mL/min (water), 4 L/min (gas) |
| Max Vacuum | -78 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Max Power | 7 W |
| Weight | 200 g |
| Type | Small Liquid Pump |
| Structure | Single-head Diaphragm Pump |
| Free Water Flow | 600 mL/min (0.158 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Motor Type | DC Brush Motor |
| Noise | 50 dB |
| Lifetime | 3000 h |
| Recommended Tubing Size | ID 4 mm, OD 6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Customization Item | Available Options / Adjustment |
| Wiring | Custom length and termination options |
| Application | Digital printing platform |
