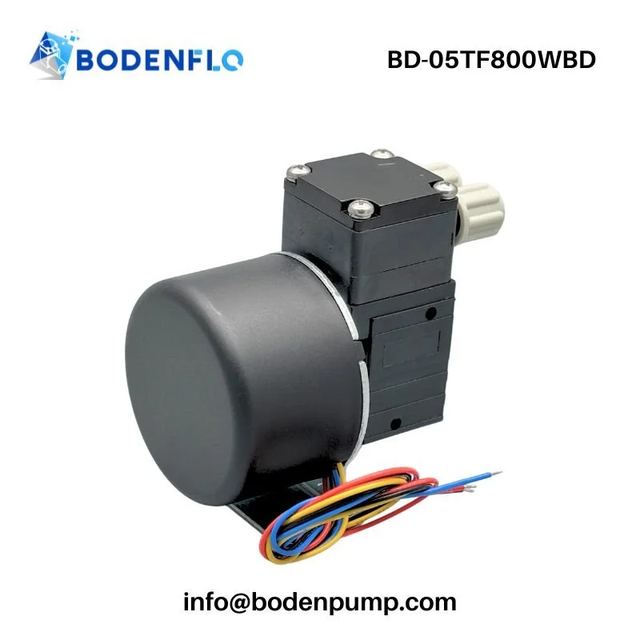

12V Liquid Pump 800mL/min 290g Diaphragm Pump 24V BD-05TF800WBD BODENFLO
Model BD-05TF800WBD
Overview
12V Liquid Pump 800mL/min 290g Diaphragm Pump 24V BD-05TF800WBD BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12 V / 24 V DC; Max Flow 800 mL/min (water), 3.5 L/min (gas); Max Vacuum –50 kPa; Max Pressure 1 bar (water), 80 kPa (gas). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12 V / 24 V DC |
|---|---|
| Max Flow | 800 mL/min (water), 3.5 L/min (gas) |
| Max Vacuum | –50 kPa |
| Max Pressure | 1 bar (water), 80 kPa (gas) |
| Load Current | 0.6A/0.35A |
| Weight | 290 g |
| Type | Micro Water Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 12 V / 24 V |
| Free Water Flow | 800 mL/min (0.211 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 5 m |
| Free Gas Flow | 3.5 L/min (0.124 cfm) |
| Max Gas Pressure | +80 kPa (11.6 psi / 800 mbar) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Recommended Tubing Size | ID4 mm / OD6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PPS |
| Diaphragm | EPDM |
| Valve | EPDM |
| Item | Customization Options |
| Branding | Private label or customer-specific marking |
| Control Signal | 0–5 V PWM speed control and FG output |
| Application | Ink circulation system |
