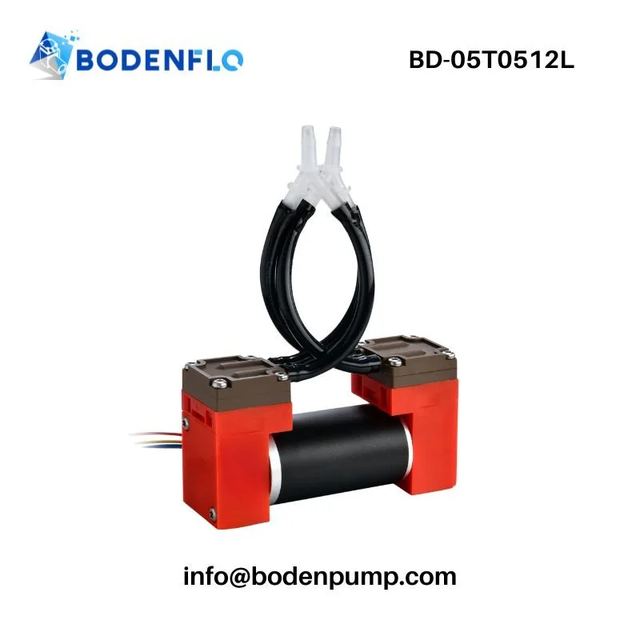

Gas Diaphragm Pump 12Lpm DC Dual-Head High Flow Vacuum Pump BD-05T0512L
Model BD-05T0512L
Overview
Gas Diaphragm Pump 12Lpm DC Dual-Head High Flow Vacuum Pump BD-05T0512L supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12/24V; Max Flow 12L/min; Max Vacuum –72 kPa; Max Pressure 1~1.5Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 12L/min |
| Max Vacuum | –72 kPa |
| Max Pressure | 1~1.5Bar |
| Max Power | 11 W |
| Weight | 262g |
| Voltage Range | 12 V / 24 V |
| Max Flow Rate | 12 L/min |
| Max Negative Pressure | –72 kPa |
| Max Positive Pressure | 1–1.5 bar |
| Motor Type | High-end brushless DC motor |
| Waterproof Level | IP54 |
| Dimensions | 103 × 32 × 55 mm |
| Component | Material / Properties |
| Pump Body | Nylon – Lightweight and impact-resistant |
| Motor Housing | IP54 sealed for dust and water protection |
| Customization Aspect | Options / Notes |
| Pump Label & Branding | Custom labeling for OEM clients |
