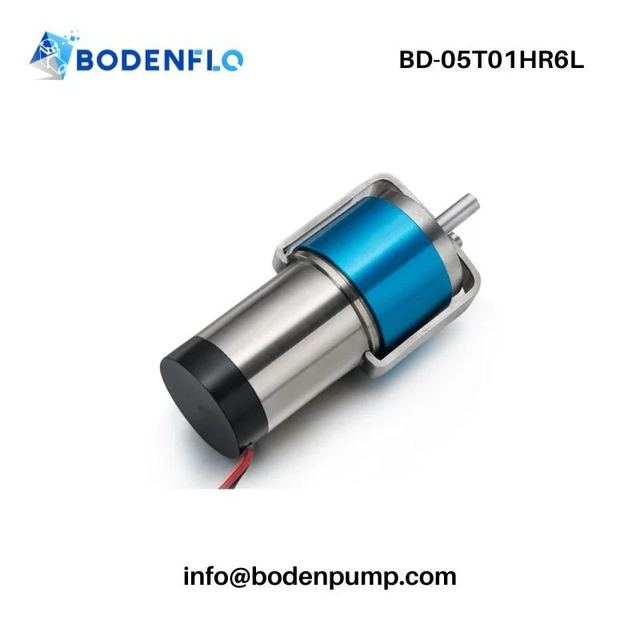

Mini Rotary Vane Vacuum Pump Compact 6V Gas Sampling Pump BD-05T01HR6L
Model BD-05T01HR6L
Overview
Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong lists Mini Rotary Vane Vacuum Pump Compact 6V Gas Sampling Pump BD-05T01HR6L. Voltage 0-6V, max flow 1-6L/min and max vacuum –12 kPa are among the specifications published.
Technical specifications
| Voltage | 0-6V |
|---|---|
| Max Flow | 1-6L/min |
| Max Vacuum | –12 kPa |
| Max Pressure | +12 kPa |
| Max Power | 3 W |
| Weight | 118 g |
| Voltage Range | 0 – 6 V DC |
| Maximum Flow Rate | 1 – 6 L/min |
| Maximum Vacuum Pressure | –12 kPa |
| Maximum Positive Pressure | +12 kPa |
| Motor Type | Coreless DC Motor |
| Protection Class | IP20 |
| Service Life | >6,000 hours |
| Pump Head Material | 304 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Vane Material | Graphite |
| Dimensions | 64 × 26 × 30 mm |
| Component | Material / Performance |
| Pump Head | 304 Stainless Steel |
| Pump Housing | 304 Stainless Steel |
| Vanes | Graphite – low wear, self-lubricating |
| Lifetime | >6,000 hours in clean gas environments |
| Customization Aspect | Available Options / Notes |
| Flow Direction | Supports reversible motor rotation |
| Housing & Mounting | Optional mounting brackets available |
