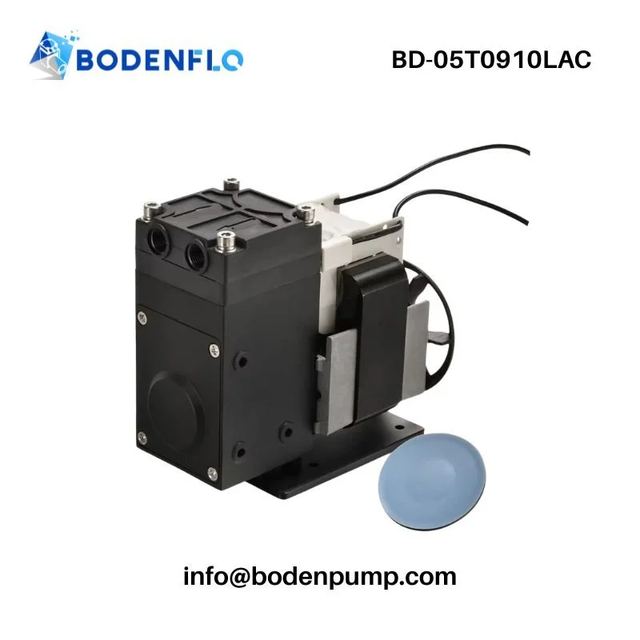

AC Sampling Pump 10L Aluminum Alloy Continuous Operation PTFE Diaphragm Gas Pump BD-05T0910LAC
Model BD-05T0910LAC
Overview
AC Sampling Pump 10L Aluminum Alloy Continuous Operation PTFE Diaphragm Gas Pump BD-05T0910LAC, from Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. Published figures include voltage 220V/ 50Hz, max flow 10L/min and max vacuum –80 kPa.
Technical specifications
| Voltage | 220V/ 50Hz |
|---|---|
| Max Flow | 10L/min |
| Max Vacuum | –80 kPa |
| Max Pressure | 1.9 Bar |
| Motor | 200-220 V/ 50Hz Shade-pole |
| Max Power | 60W |
| Weight | 1.32kg |
| Voltage Range | 220V / 50Hz |
| Maximum Flow Rate | 10 L/min |
| Maximum Negative Pressure | –80 kPa |
| Maximum Positive Pressure | 1.9 bar |
| Motor Type | 200–220V / 50Hz Shade-pole AC motor |
| IP Rating | IP00 |
| Service Life | >10,000 hours |
| Dimensions (L×W×H) | 127.6 × 61 × 105 mm |
| Component | Material / Performance |
| Pump Head | PPS (engineering thermoplastic) |
| Diaphragm / Valve | EPDM |
| Lifetime (continuous duty) | >10,000 hours under normal operating conditions |
| Customization Aspect | Available Options / Notes |
| Diaphragm Materials | EPDM standard (FKM optional) |
| Label / Branding | Custom labeling for OEM projects |
| Integration Support | Engineering guidance for compact analyzers |
