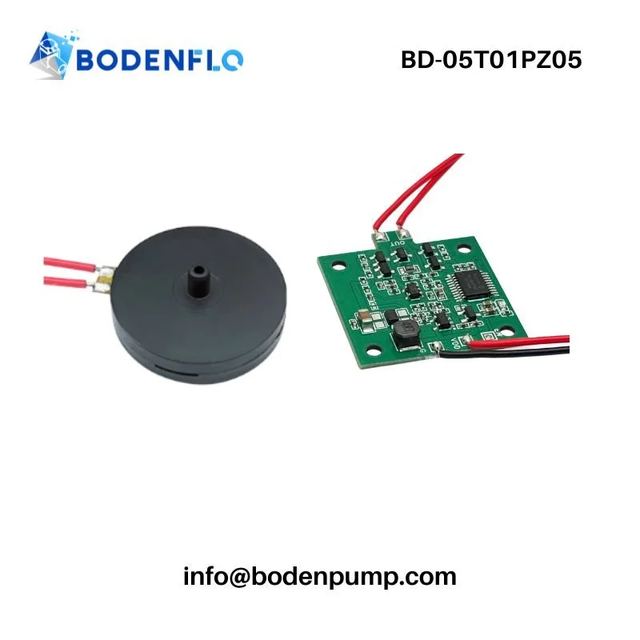

Piezoelectric Pump Ultra Compact Micro Piezo Air Pump BD-05T01PZ05 BODENFLO
Model BD-05T01PZ05
Overview
Piezoelectric Pump Ultra Compact Micro Piezo Air Pump BD-05T01PZ05 BODENFLO, listed by Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. Published figures include input voltage 3.7–4.2V DC, drive frequency 22–28 kHz (24 kHz @ 16.5 VDC) and static pressure @ 15 vpp 1.42kPa.
Technical specifications
| Input Voltage | 3.7–4.2V DC |
|---|---|
| Drive Frequency | 22–28 kHz (24 kHz @ 16.5 VDC) |
| Static Pressure @ 15 Vpp | 1.42kPa |
| Static Pressure | 1kpa |
| Ambient Temperature Range | 5-60 °C |
| Flow Rate @ 15 Vpp | ≥0.7 L/min |
| No-Load Flow Rate | 1 L/min |
| Feature for Personalization | Selection Choices |
