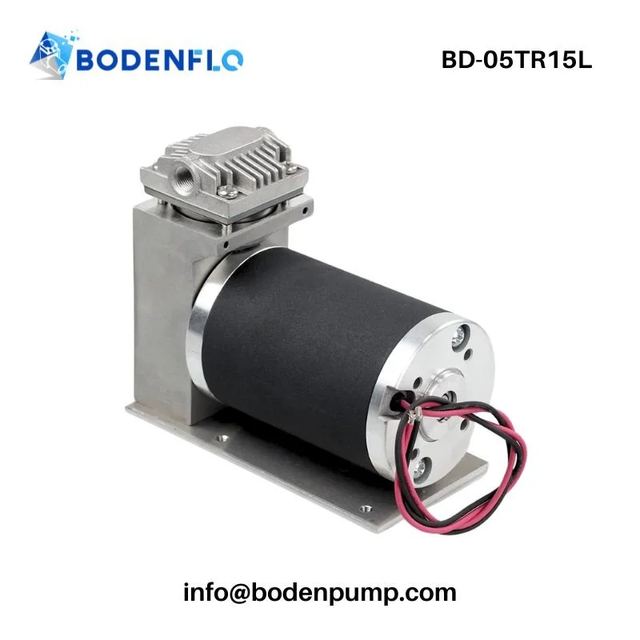

Swing Piston Gas Pump 7 Bar 15 L/min Low Vibration Mini Compressor Pump BD-05TR15L
Model BD-05TR15L
Overview
Swing Piston Gas Pump 7 Bar 15 L/min Low Vibration Mini Compressor Pump BD-05TR15L supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 24 V DC; Max Flow 15 L/min; Max Vacuum -90 kPa; Max Pressure 7 bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 24 V DC |
|---|---|
| Max Flow | 15 L/min |
| Max Vacuum | -90 kPa |
| Max Pressure | 7 bar |
| Max Power | 65 W |
| Weight | 1.6 kg |
| Type | Micro Air Pump |
| Structure | Swing Piston Gas Pump |
| Voltage Range | 24 V DC |
| Motor Type | Brush DC Motor |
| Max Load Current | 2.6 A |
| Power | 65 W |
| Lifetime | >3,000 h under rated operating conditions |
| Operating Ambient Temperature | -20°C to 60°C |
| Operating Medium Temperature | 5°C to 40°C |
| Pump Head | Aluminum Alloy |
| Piston Cup | PTFE |
| Valve | Stainless Steel |
| Operation | Oil-free, dry-running capable |
| Item | Customization Options |
| Branding | Private label or customer-specific marking |
| Application | Gas sampling module |
