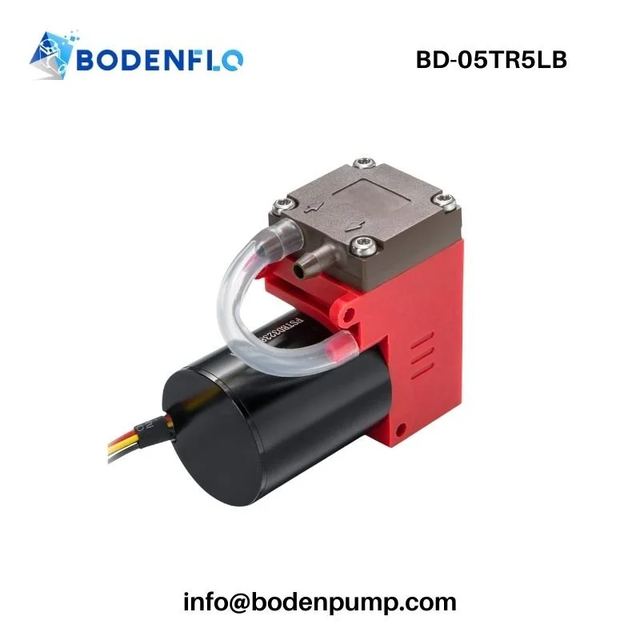

Swing Piston Gas Pump 5.5Lpm 8k Longlife Brushless dc air compressor BD-05TR5LB
Model BD-05TR5LB
Overview
Swing Piston Gas Pump 5.5Lpm 8k Longlife Brushless dc air compressor BD-05TR5LB supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12V / 24V; Max Flow 5.5L/min; Max Vacuum –70 kPa; Max Pressure 2-3Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12V / 24V |
|---|---|
| Max Flow | 5.5L/min |
| Max Vacuum | –70 kPa |
| Max Pressure | 2-3Bar |
| Max Power | 8W |
| Weight | 153g |
| Voltage Range | 12 V / 24 V |
| Maximum Flow | 5.5 L/min |
| Max Negative Pressure | –70 kPa |
| Max Positive Pressure | 2–3 bar |
| Motor Type | Brushless DC motor |
| Waterproof Level | IP00 |
| Dimensions (L×W×H) | 80 × 31 × 54 mm |
| Component | Material / Performance |
| Customization Aspect | Available Options |
| Voltage Options | 12 V / 24 V DC |
| Valve Materials | EPDM (standard), FKM (optional) |
| Piston Cup Material | PTFE (standard) |
| Cable & Connector | Custom lengths and connector types |
| Mounting Options | Customized brackets, anti-vibration solutions |
