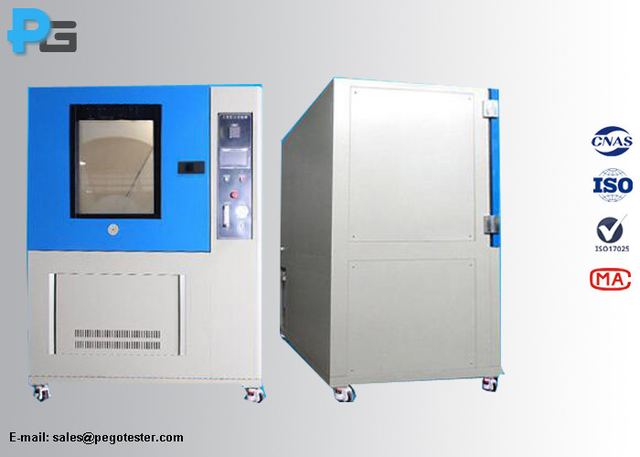

SS IEC60529 Anti Dust Test Chamber For IP5X IP6X Tests
Model IP56X
Overview
SS IEC60529 Anti Dust Test Chamber For IP5X IP6X Tests supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60529; Material Stainless Steel; Application Enclosure For IP5X And IP6X Testing. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60529 |
| Material | Stainless Steel |
| Application | Enclosure For IP5X And IP6X Testing |
| Working Power | 380V/50Hz |
| Control Sysetem | LCD Touch Screen+touch Screen |
| Temperature range | RT~+60℃ |
| Airflow velocity | ≤ 2.5m/s |
| Time range | 1S~999H (adjustable) |
| Vibration time | 1S~999H (adjustable) |
| Dust concentration | 2~4kg/m 3 |
| Vacuum | 0~10Kpa (adjustable) |
| Pumping speed | 0~6000L/h (adjustable) |
| Sand and dust | Dry powder, portland cement paste |
| Power socket for EUT | IP66, 220V/16A |
| Circulatory system | Dust recycling |
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H. |
| Power supply | 1.5KW, AC220V±10%, 50Hz |
| Temperature | 15℃～35℃, humidity:≤85%R.H. |
| Diameter | 50mm (test probe 1), 12.5mm (test probe 2) |
| Weight | 500g (test probe 1), 15g (test probe 2) |
