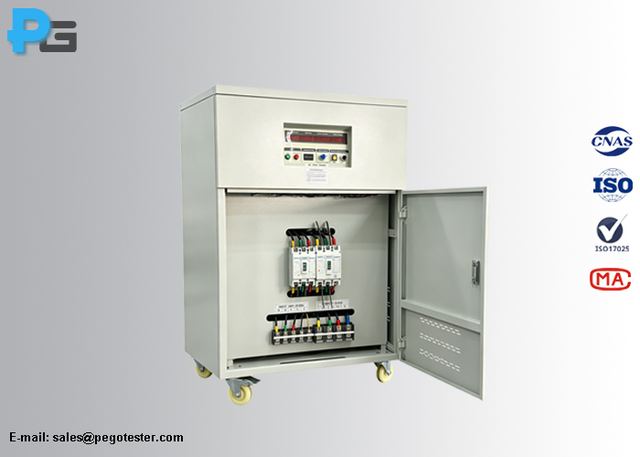

AC Power Supply 5KV to 400KV Available, 0-520V, 400Hz Adjsutable

Model TY-8330

AC Power Supply 5KV to 400KV Available, 0-520V, 400Hz Adjsutable

Overview

AC Power Supply 5KV to 400KV Available, 0-520V, 400Hz Adjsutable supplied by Pego Electronics (Yi Chun) Company Limited. Listed under Power Supplies. Key published specifications: Certification CNAS calibration Certificate; Power Capacity 30KVA; Output Voltage 0-520V; Output Frequency 40.0Hz-499.9Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationCNAS calibration Certificate
Power Capacity30KVA
Output Voltage0-520V
Output Frequency40.0Hz-499.9Hz
Harmonic DistortionSinewave≤2%
Capacity30KVA (Customizable)
ModeIGBT/PWM
Input Voltage3φ 4 W + G: 380V±10%
Input Frequency47Hz-63Hz or 400Hz ±5%
Frequency Range40.0Hz-499.9Hz (presetable)
Display Resolution4-digit with 0.1Hz/0.1V/0.1A/0.1W resolution
Dimensions850mm (D) × 750mm (W) × 1200mm (H)
Weight330KG
Output current0.005A～10.00A
Max output power500W
Dimension420mm*420mm*190mm
Voltage range0.005V～30.00V, 0.005V~50.000V, 0.0005V~300.00V
Current range0.005A～10.00A, 0.005A~10.00A, 0.005A~5.00000A
