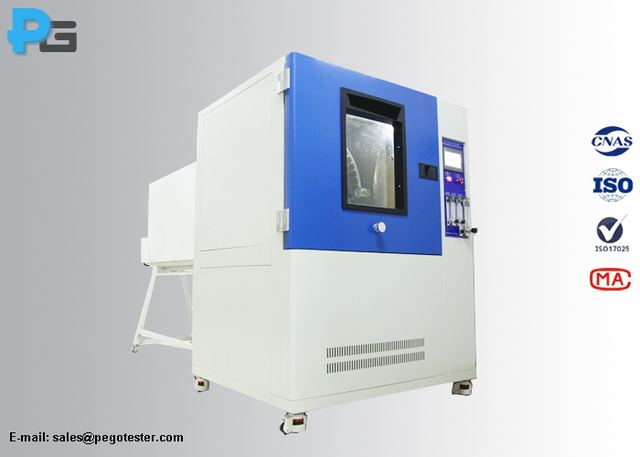

IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable
Model PG-IPX16B
Overview
IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Test IP Grade IPX1, IPX2, IPX3, IPX4, IPX5, IPX6; Normative Standards IEC60529, IEC60335-1, IEC60598-1; Turntable Speed 1-5r/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Test IP Grade | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 |
| Normative Standards | IEC60529, IEC60335-1, IEC60598-1 |
| Turntable Speed | 1-5r/min |
| Control Units | PLC+touch Screen |
| Working Power | 380V/50Hz |
| Model | IPX16B |
| Control System | 7 inch touch screen + PLC |
| Inner Chamber Dimensions | 1300×1300×1450mm (W×D×H) |
| Outer Dimensions | 1750×3800×2150mm (L×D×H) |
| Operating Conditions | 5℃~35℃ temperature ≤85% relative humidity 86kPa~106kPa pressure |
| Standard | IEC60695-10-2, IEC60335, IEC60601 |
| Material | stainless steel |
| Temperature | R.T.~300℃ |
| Outer size | 2100*2100*2150mm (Customizable) |
| Inner Size | 1800*1800*2000mm (Customized) |
| Application | mobile, household appliance,auto parts |
