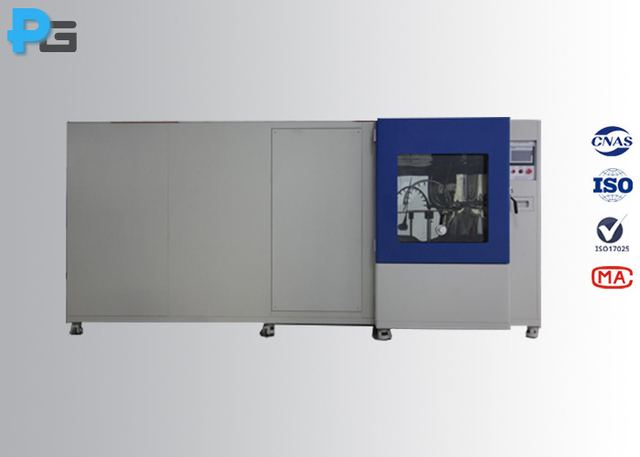

6.0KW Stainless Steel Waterproof Test Chamber For IPX3 IPX4
Model IPX19KBS
Overview
6.0KW Stainless Steel Waterproof Test Chamber For IPX3 IPX4, listed by Pego Electronics (Yi Chun) Company Limited. Published figures include certification Third-Lab Calibration Certificate, standard IEC60529 and material Stainless Steel.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60529 |
| Test Grade | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 And IPX9K |
| Material | Stainless Steel |
| Working dimension | 900mm*1050mm*1200mm (L*D*H) |
| Outer dimension | 2100mm*4100mm*2000mm (l*D*H) |
| Diameter of turntable | Φ400mm |
| Bear weight of turntable | 50KG |
| Lifting height of upper turntable | 500-850mm |
| Title angle of upper turntable | 0 0 or 15 0 |
| Speed of turntable | 1--5r/min (adjustable) |
| Test time | 0--999min (controlled by touch screen) |
| Weight of the chamber | 300KG |
| Working power | 380V/50Hz (3 phase 5 wires) |
| Power consumption | 6.0KW |
| Size of drip board | 600mm*600mm |
| Aperture of nozzle | Φ0.4mm |
| Grid pattern | 20*20mm |
| Flowmeter | Manual adjustment |
| Lifting mode of drip board | Fix |
| Tube Radius | R400 |
| Aperture of nozzles | 0.4mm |
| Inner diameter of tube | 15mm |
| Tube angle | 120 0 (IPX3), 350 0 (IPX4) |
| IPX5 nozzle diameter | Φ6.3mm |
