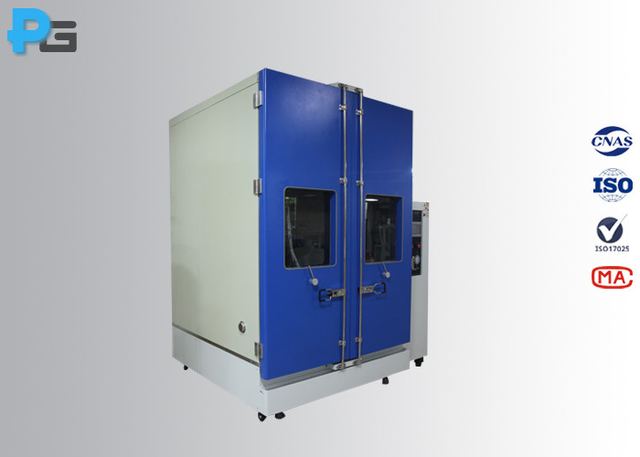

IEC60529 CNAS Environment Dust Test Chamber For IP5X IP6X Testing
Model IP56X
Overview
IEC60529 CNAS Environment Dust Test Chamber For IP5X IP6X Testing supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Application Enclosure For IP5X And IP6X Testing; Application Dust Talcum Powder; Material Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Application | Enclosure For IP5X And IP6X Testing |
| Application Dust | Talcum Powder |
| Material | Stainless Steel |
| Control Sysetem | LCD Touch Screen |
| Working dimension(mm) | 1000*1000*1000(L*D*H) (customized) |
| Outer dimension(mm) | 1450*1250*2030(L*D*H) |
| Temperature range | RT+10~+40℃ |
| Airflow velocity | ≤ 2.5m/s |
| Time range | 0~999H(adjustable) |
| Vibration Time | 0-999H(adjustable) |
| Time Accuracy | ±1s |
| Dust concentration | 2~4kg/m 3 |
| Vacuum degree | 0-10Kpa (adjustable) |
| Evacuation speed | 0-60L/H (adjustable) |
| Circulatory system | Dust recycling |
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H. |
| Power socket for EUT | IP66, 220V/16A |
| Power supply | 1.5KW, AC220V±10%, 50Hz (single phase) |
| Working Power | 380V/50Hz |
| Temperature | 15℃～35℃, humidity:≤85%R.H. |
| Standard | IEC60695-10-2, IEC60335, IEC60601 |
| Outer size | 2100*2100*2150mm (Customizable) |
| Inner Size | 1800*1800*2000mm (Customized) |
