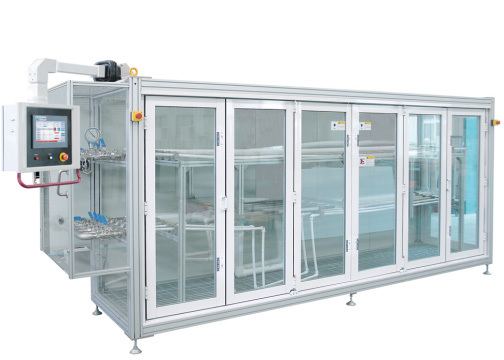

CHW-63M Plastic Pipeline System Cold and Hot Water Circulation Testing Machine
Model CHW-63M
Overview
CHW-63M Plastic Pipeline System Cold and Hot Water Circulation Testing Machine supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Velocity Of Flow >0.9m/s; Control Method Plc Control; Display Mode Touch Screen Display. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Velocity Of Flow | >0.9m/s |
| Control Method | Plc Control |
| Display Mode | Touch Screen Display |
| Number Of Cycles | Any Number Of Times From 0 To 100,000 |
| Temperature Control Range | 20°c To Room Temperature (room Temperature> 20°c) |
| Temperature Control Accuracy | Set Value ±0.5°c |
| Standard Number | Standard Name |
| Pressure Control Range | 0.40 MPa ~ 1.20 MPa |
| Maximum Total Cross-sectional Area | 6200 mm² (2 × φ63); customizable |
| Circulation Time (Hot/Cold Water) | 600s to 1800s (adjustable) |
| Hot/Cold Water Switching Time | ≤60s |
| Cycle Count | 0 to 100,000 cycles |
| Maximum Straight Pipe Length | 3700mm |
| Flow Velocity | >0.9m/s |
| Automatic Water Supply Pressure | >0.05 MPa |
| Cold Water Tank Temperature Range | 20℃ to room temperature |
| Cold Water Tank Control Accuracy | Set value ±0.5℃ |
| Hot Water Tank Temperature Range | Room temperature to 95℃ |
| Hot Water Tank Control Accuracy | Set value ±0.5℃ |
| Power Supply | 380V AC, 50Hz, 25kW |
| Outline Dimensions | 5200 × 3200 × 2100 mm |
| Installation Dimensions | 6000 × 4000 × 3000 mm |
| Total Weight | 3210 kg |
| Control mode | Touchscreen control |
| Pressure range | -80kPa～0kPa |
