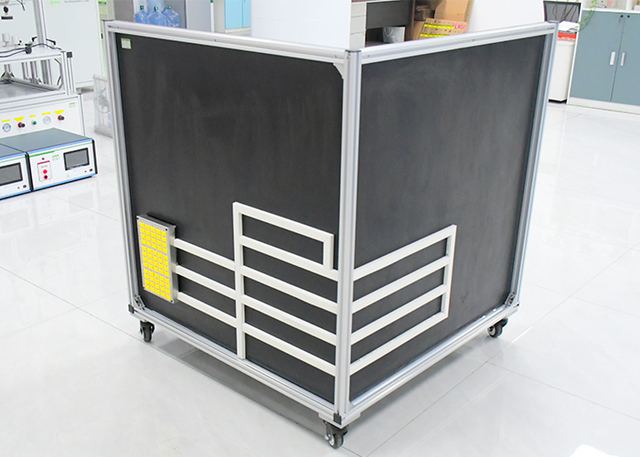

IEC 60335-1 Temperature Rise Test Corner Chamber for Electrical Appliance Testing
Overview
IEC 60335-1 Temperature Rise Test Corner Chamber for Electrical Appliance Testing supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Inner Size 1000 * 1000 * 1000 mm (L*W*H); Structure 2 side plates + 1 base plate; Thermocouple Type K-Type; Thermocouple Diameter ≤ 0.3 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Inner Size | 1000 * 1000 * 1000 mm (L*W*H) |
|---|---|
| Structure | 2 side plates + 1 base plate |
| Thermocouple Type | K-Type |
| Thermocouple Diameter | ≤ 0.3 mm |
| Temperature Measuring Points | 60 points (SN1102-1M60P) |
| Distribution per Plate | 20 points each |
| Layout Spacing | 100 * 100 mm (square grid) |
| Copper Sheet Size | Ø15 mm * 1 mm thickness |
| Copper Sheet Quantity | 60 pcs |
| Plywood Thickness | 20 mm |
| Mobility | 4 heavy-duty removable wheels |
