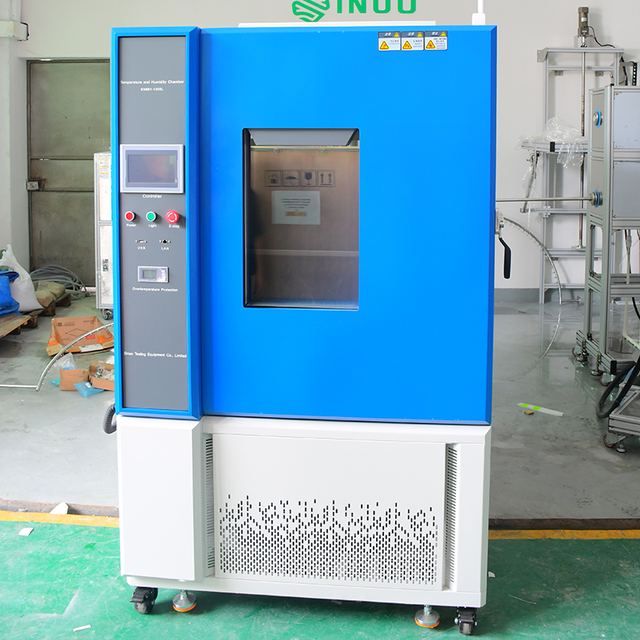

IEC 62133-1 High And Low Temperature Cycling Test Chamber for Battery Reliability Testing
Overview
IEC 62133-1 High And Low Temperature Cycling Test Chamber for Battery Reliability Testing supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Nominal Volume 408L; Inner Dimensions W800 × H850 × D600mm; External Dimensions W1275 × H1930 × D1823mm; Weight Approx. 560kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Nominal Volume | 408L |
|---|---|
| Inner Dimensions | W800 × H850 × D600mm |
| External Dimensions | W1275 × H1930 × D1823mm |
| Weight | Approx. 560kg |
| Test Methods | IEC60068-2-1:2007, IEC60068-2-2:2007, IEC60068-2-30:2005, IEC60068-2-78:2012 |
| Temperature Range | -40℃ to +150℃ |
| Humidity Range | 20-98% RH (Temperature: 20℃-85℃) |
| Heating Rate | -40℃ to +150℃ average no-load 5℃/min |
| Cooling Rate | +150℃ to -40℃ average no-load 5℃/min |
| Load Conditions | Batteries |
| Operating Noise | ≤70dB (A) |
| Bottom Structure Strength | Weight capacity: ≤100Kg/m² |
| Working Method | Air-cooled mechanical compression cascade refrigeration |
| Refrigerant | R404a (ozone depletion index: 0) |
| Control Modes | Program/Fixed value |
| Communication Interface | RS232/RS485 (max distance 1.2km) |
| Program Capacity | 120 programs, 12000 segments total |
| Refrigeration System | Compressor overheating, overcurrent, overpressure protection |
| Environmental Conditions | Temperature: 5℃-35℃; Relative humidity: ≤85%; Air pressure: 86kPa-106kPa |
| Inner Sizes | W800*850H*D600mm |
| External Sizes | W1275*1930H*1823MM |
| Weight capacity | ≤100Kg/m² |
| Temperature | 5℃-35℃; Relative humidity: ≤85%; Air pressure: 86kPa-106kPa |
