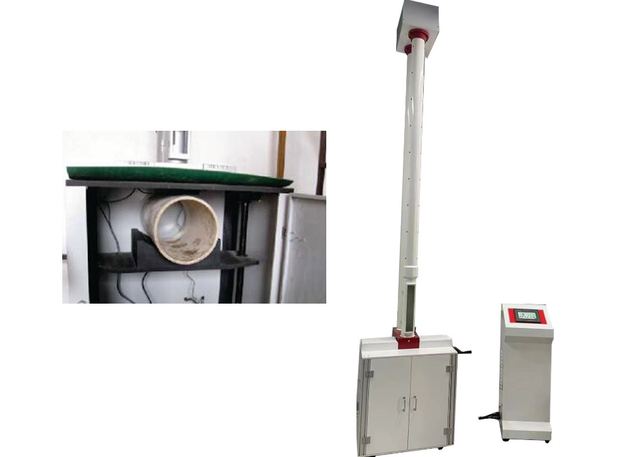

Drop Hammer Test Equipment for Impact Resistance Testing
Model XJL-300B
Overview
Drop Hammer Test Equipment for Impact Resistance Testing supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Travel Of Working Table 0-630mm; Specimen Diameter φ10~630mm; Hammer Weight 0.250~16.000kg 0.125kg/ Increment. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Travel Of Working Table | 0-630mm |
| Specimen Diameter | φ10~630mm |
| Hammer Weight | 0.250~16.000kg 0.125kg/ Increment |
| Max. Impact Height | 2000mm |
| Model | XJL-300B |
| Maximum Impact Energy | 300J |
| Maximum Height | 2000mm |
| Drop Weight Range | 0.25-16kg |
| Impact Center Accuracy | 2mm error |
| Hammer Head Options | R5mm, R10mm, R30mm (customizable) |
| Table Travel | 0mm-630mm |
| Specimen Diameter Range | 10mm~630mm |
| Power Requirements | AC220V 50Hz |
| Test Range | 0-300J |
| Test Type | Drop Hammer Test |
| Hammer Diameter | D25, D90 |
