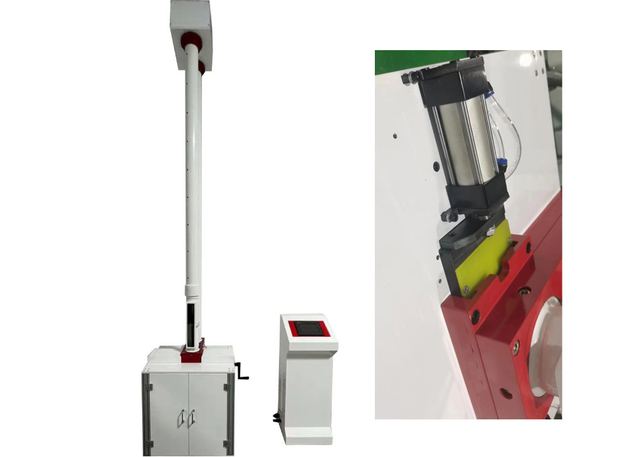

Drop Hammer Test Equipment for Impact Resistance Testing
Model XJL-300D
Overview
Drop Hammer Test Equipment for Impact Resistance Testing supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Test Range 0-300J; Sample Diameter Range Φ10-450mm; Display LCD. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Test Range | 0-300J |
| Sample Diameter Range | Φ10-450mm |
| Display | LCD |
| Max. Height | 2000mm |
| Min. Height | 30mm |
| Control Mode | Automatic |
| Power Supply | AC220V-230V/50Hz |
| Model | XJL-300D |
| Drop Hammer Mass | 0.5kg-5kg, 0.125kg increments |
| Hammer Diameter | D25mm, D50mm, D90mm |
| Height of Fall | 30mm-2000mm, error ≤ ±2mm |
| Sample Diameter | Φ10mm-Φ450mm |
| Impact Center Deviation | ≤2mm from fixture center |
| Power Source | 220-230VAC |
| Dimensions | 720mm × 690mm × 3650mm |
| Net Weight | 300kg |
| Test Type | Drop Hammer Test |
