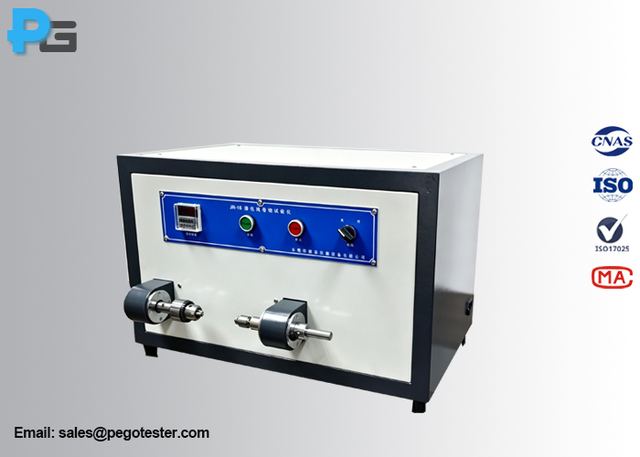

IEC60851-3 Round Wire Mandrel Winding Test Apparatus
Model PG-RMWT
Overview
IEC60851-3 Round Wire Mandrel Winding Test Apparatus supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60851-3; Wind Speed 100±10r/min; Wind Turns 0-999r Settable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60851-3 |
| Wind Speed | 100±10r/min |
| Wind Turns | 0-999r Settable |
| Power Supply | AC220V±10%, 50Hz |
| Power consumption | ≤100W |
| Operating environment | Temperature: 0-40 ℃ , relative humidity: ≤85% |
| Dimension and weight | L600*W350*375mm/35KG |
| Small weight | 0.1N*2, 0.2N*1, 0.5N*1, |
| Large weight hook | 1N*1 |
| Large weight | 1N *2, 2N*1, 5N*3, |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Scraper diameter | (0.23±0.01)mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Test voltage | DC (6.5±0.5)V |
| Flange diameter | Ø180mm and Ø260mm |
| Bending arm length | 300mm and 400mm |
| Rotating speed | 80±5r/min |
| Test length | 500mm |
| Input power | AC 220V±10% 50Hz |
