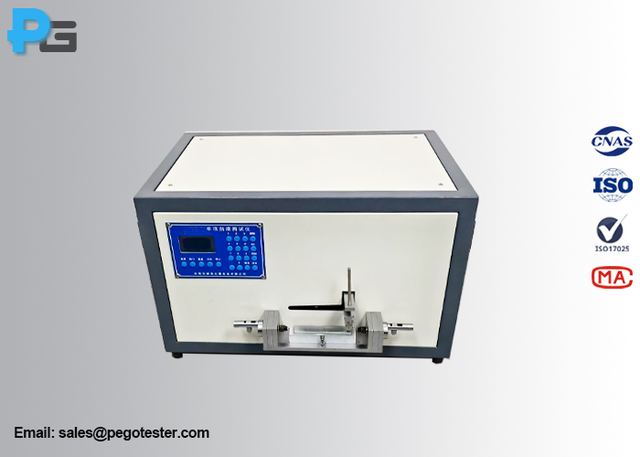

IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus
Model PGW-WART
Overview
IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-lab Calibration Certificate; Standard IEC60851-3; Scraper Diameter (0.23±0.01)mm; Scrape Speed Of Scraping Device (400±40)mm/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-lab Calibration Certificate |
|---|---|
| Standard | IEC60851-3 |
| Scraper Diameter | (0.23±0.01)mm |
| Scrape Speed Of Scraping Device | (400±40)mm/min |
| Test Voltage | DC (6.5±0.5)V |
| Short-circuit Current | (20±0.5)mA |
| Power Supply | AC 220V±10%, 50Hz |
| Sample rotation way | Automatically |
| Weight | 5N*3, 2N*2, 1N*1, 0.5N*1, 0.2N*2, 0.1N*1 |
| Power consumption | <150W |
| Operating environment | Temperature: 0-40 ℃ , relative humidity: ≤85% |
| Dimension and weight | L600*W350*375mm/35KG |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Flange diameter | Ø180mm and Ø260mm |
| Bending arm length | 300mm and 400mm |
| Rotating speed | 80±5r/min |
| Test length | 500mm |
| Input power | AC 220V±10% 50Hz |
| Wind speed | 100±10r/min |
