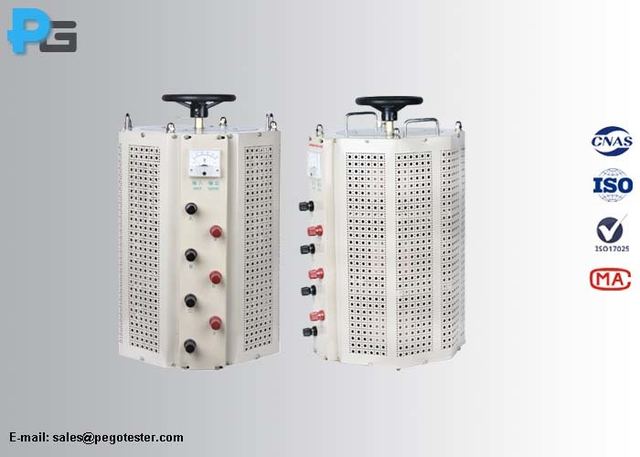

Voltage Regulator
Model TSGC2J
Overview
Voltage Regulator supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification CNAS calibration Certificate; Input Voltage 220V, 380V, 600V (customizable); Output Voltage 0-250V, 0-430V; Output Capacity Customizable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CNAS calibration Certificate |
|---|---|
| Input Voltage | 220V, 380V, 600V (customizable) |
| Output Voltage | 0-250V, 0-430V |
| Output Capacity | Customizable |
| Material | Pure Copper |
| Model | TSGC2J |
| Capacity | Customization |
| Rated Current | Depends |
| Frequency | 50/60Hz |
| Applicable Load | Arbitrary load |
| Outer Dimension/Weight | W520mm × D430mm × H1300mm / approximately 115kg |
| Protection Level | IP20 |
| Heat Dissipation Method | Self-cooling |
| Ambient temperature | -15℃ to 40℃ |
| Altitude height | ≤1500m |
| Installation site | Indoor use only |
| Weight | 5KG |
| Output current | 0.005A～10.00A |
| Max output power | 500W |
| Dimension | 420mm*420mm*190mm |
| Voltage range | 0.005V～30.00V, 0.005V~50.000V, 0.0005V~300.00V |
| Current range | 0.005A～10.00A, 0.005A~10.00A, 0.005A~5.00000A |
