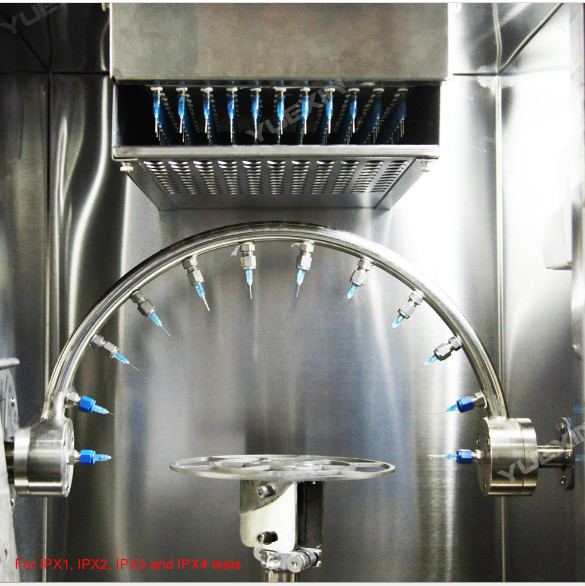

IPX1 IPX4 Waterproof Test Chamber SUS304 IEC60598 IEC60529
Model IPX1234
Overview
IPX1 IPX4 Waterproof Test Chamber SUS304 IEC60598 IEC60529 supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60529, IEC60598; Material SUS304 Stainless Steel; Test IP Code IPX1, IPX2, IPX3, IPX4. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60529, IEC60598 |
| Material | SUS304 Stainless Steel |
| Test IP Code | IPX1, IPX2, IPX3, IPX4 |
| Configuration | Drip Board+oscillating Tube |
| Shipment | By Sea |
| Control System | 7 inch touch screen +PLC |
| Inner Chamber Dimension | 1300*1300*1450 (W*D*H) |
| Outer Dimension | 1750*1520*1950mm (L*D*H) |
| Drip board size | 1000mm*1000mm |
| Aperture of drop | Φ0.4mm |
| Pitch-row(mm) | 20*20mm |
| Tube Radius (mm) | R600 (R400, R200 for optional) |
| Delivery Rate (L/min) | IPX3=0.56L/min, IPX4=0.84L/min |
| Tube Angle | 120 0 (IPX3), 360 0 (IPX4) |
| Flow Control Mode | Manual control |
| Diameter of Turntable (mm) | Ø600 |
| Speed of Turntable | 1-5r/min |
| Height of Turntable | 550-1000mm |
| Tilt angle of turntable | 0 0 or 15 0 |
| Protection | Electric leakage, hydropenia, short circuit |
| Working Power | 380V/50Hz (3 phases 2 lines) |
| Power | 3KW |
| Power supply for sample | 220V/50Hz |
| Working conditions | 5℃~35℃ (temperature), ≤85% (R.H.), 86kPa～106kPa (pressure) |
