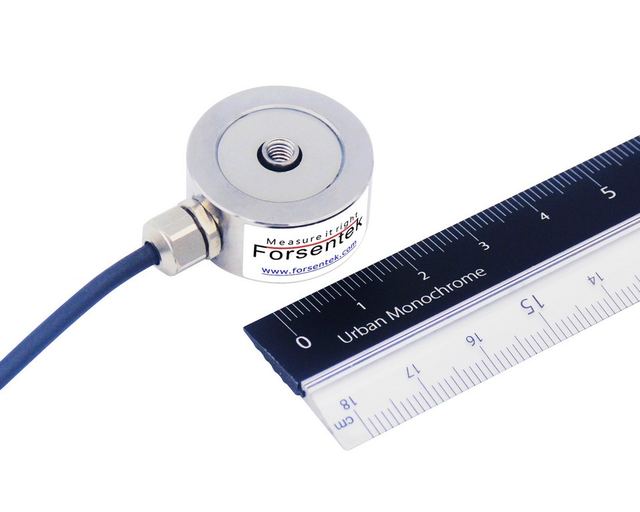

Small Compression Sensor 50kg 500N Press Force Load Cell 100kg 1kN
Model FCU
Overview
Small Compression Sensor 50kg 500N Press Force Load Cell 100kg 1kN supplied by Forsentek Co. Limited. Key published specifications: Measure Direction Compression And Traction; Force Range 100N 200N 500N 1kN; Material Stainless Steel; Connection M4 Threaded Hole. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Measure Direction | Compression And Traction |
|---|---|
| Force Range | 100N 200N 500N 1kN |
| Material | Stainless Steel |
| Connection | M4 Threaded Hole |
| Output | Analog Load Cell |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.03% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
