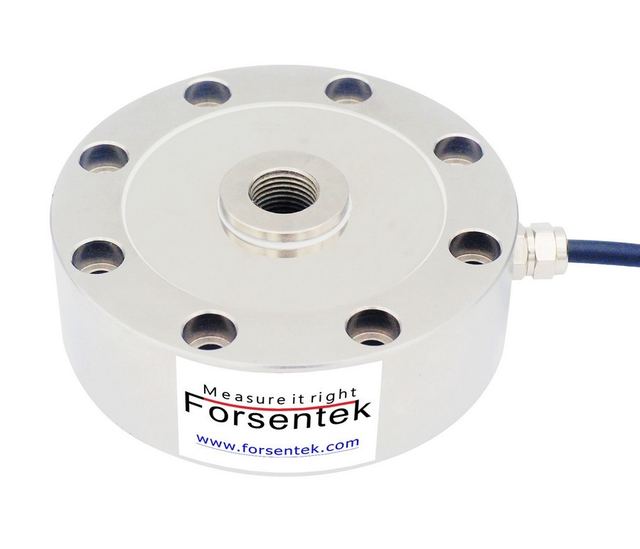

0-5000kg Compression Load Cell With 0-10V 0-5V 4-20mA Output
Model FCMN
Overview
Forsentek Co. Limited lists 0-5000kg Compression Load Cell With 0-10V 0-5V 4-20mA Output. Force range 500kg 1000kg 2000kg 3000kg 5000kg, material Stainless Steel and output 0-5V 0-10V 4-20mA are among the specifications published.
Technical specifications
| Force Range | 500kg 1000kg 2000kg 3000kg 5000kg |
|---|---|
| Material | Stainless Steel |
| Output | 0-5V 0-10V 4-20mA |
| Capacity | 0.5t 1t 2t 3t 5t |
| Rated output | 0-5V 0-10V 4-20mA |
| Excitation | 12~24V DC |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.2% F.S |
| Hysteresis | ±0.2% F.S |
| Nonrepeatability | ±0.1% F.S |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Operating temperature | -10...+60 o C |
| Temperature shift zero | ±0.01% R.O./ o C |
| Temperature shift span | ±0.01% R.O./ o C |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø5.3*3000mm |
| Connection | M16*1.5 |
