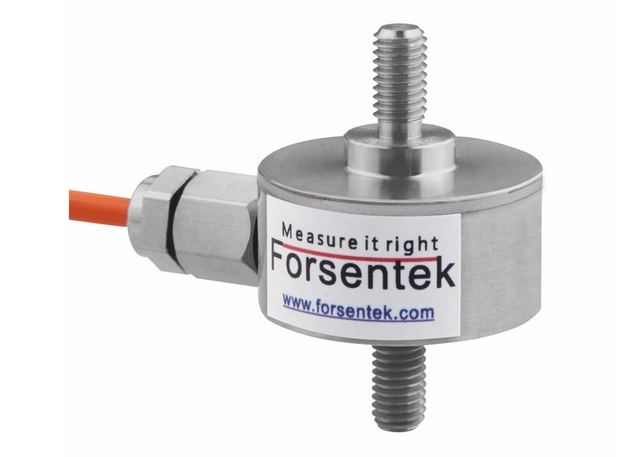

Tension force transducer 50N 100N 200N 500N 1kN pull load sensor
Model FL25
Overview
Tension force transducer 50N 100N 200N 500N 1kN pull load sensor supplied by Forsentek Co. Limited. Key published specifications: Theory Pull Load Cell; Output Analog Sensor; Capacity 5kg 10kg 20kg 30kg 50kg 60kg 100kg; Rated output 2.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Theory | Pull Load Cell |
|---|---|
| Output | Analog Sensor |
| Capacity | 5kg 10kg 20kg 30kg 50kg 60kg 100kg |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(10min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 700±30 ohms |
| Output resistance | 700±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Threaded Rod | M5/M6 |
