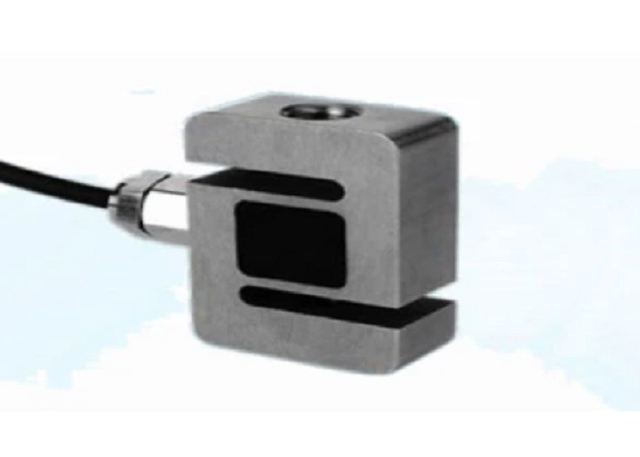

5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor
Model HZFS-013
Overview
5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Material Stainless Steel; Capacity 5-100KG; Rated Output 2.0 ±10%mV/V; Zero Balance ±2%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Stainless Steel |
|---|---|
| Capacity | 5-100KG |
| Rated Output | 2.0 ±10%mV/V |
| Zero Balance | ±2%F.S. |
| Insulation | ≥5000M Ω/100VDC |
| Non-linearity | 0.05%F.S. |
| Recommended Excitation | 5-10V |
| Hysteresis | 0.05%F.S. |
| Maximum Excitation | 15V |
| Repeatability | 0.05%F.S. |
| Compensated Temp Range | -10~60 ºC |
| Creep (30min) | 0.05%F.S. |
| Operating Temp Range | -20~80 ºC |
| Temp Effect on Output | 0.05%F.S./10 ºC |
| Temp Effect on Zero | 0.05%F.S./10 ºC |
| Cable Size | φ3x 3m |
| Rated Capacities(Emax) | 5-100KG |
| Type | Mini Load Cell |
| Application | Testing Instruments |
| output | 1.5-2.0mV/V |
