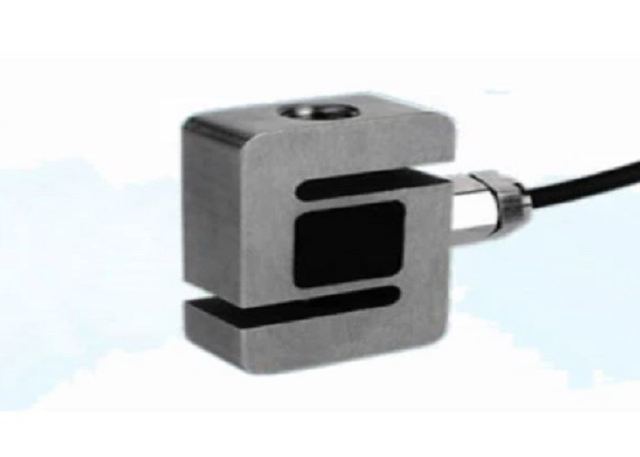

5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor INFS-013

Model INFS-013

5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor INFS-013

Overview

5-100KG Stainless Steel Tension S Type Load Cell/Force Sensor INFS-013, listed under Force Sensors by Innovation Electronic Co.,Ltd. The listing gives material Stainless Steel, capacity 5-100KG and rated output 2.0 ±10%mV/V.

Technical specifications

MaterialStainless Steel
Capacity5-100KG
Rated Output2.0 ±10%mV/V
Zero Balance±2%F.S.
Insulation≥5000M Ω/100VDC
Non-linearity0.05%F.S.
Recommended Excitation5-10V
Hysteresis0.05%F.S.
Maximum Excitation15V
Repeatability0.05%F.S.
Compensated Temp Range-10~60 ºC
Creep (30min)0.05%F.S.
Operating Temp Range-20~80 ºC
Temp Effect on Output0.05%F.S./10 ºC
Temp Effect on Zero0.05%F.S./10 ºC
Cable Sizeφ3x 3m
Rated Capacities(Emax)5-100KG
Applicationweighing scale
