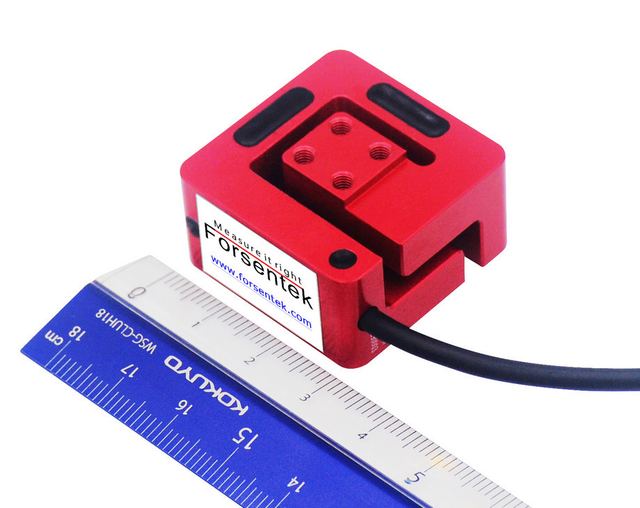

Miniature 3-Axis Load Cell 5kg 10kg 20kg Mini 3D Force Sensor

Model F3P

Miniature 3-Axis Load Cell 5kg 10kg 20kg Mini 3D Force Sensor

Overview

Miniature 3-Axis Load Cell 5kg 10kg 20kg Mini 3D Force Sensor, listed under Force Sensors by Forsentek Co. Limited. The listing gives type Triaxial Load Cell, force range 50N 100N 200N and output Analog Sensor.

Technical specifications

TypeTriaxial Load Cell
Force Range50N 100N 200N
OutputAnalog Sensor
Ordering codeCapacity
Sensitivity1.0mV/V
Excitation3-12V
Zero balance±0.05mV/V
Non-linearity±0.3% of the capacity
Hysteresis±0.3% of the capacity
Non-repeatability±0.1% of the capacity
Creep(3min)±0.2% of the capacity
Safe overload150% of the capacity
Ultimate overload200% of the capacity
Compensated temperature0...+40 o C
Operating temperature-10...+60 o C
Temperature shift on zero±0.03% R.O./ o C
Temperature shift on span±0.02% R.O./ o C
Input resistance335±10 ohms
Output resistance1000±100 ohms
Insulation resistance>2000M ohms
Ingress protectionIP62
Material of elementRed anodized aluminum
Load DirectionFx/Fy/Fz
