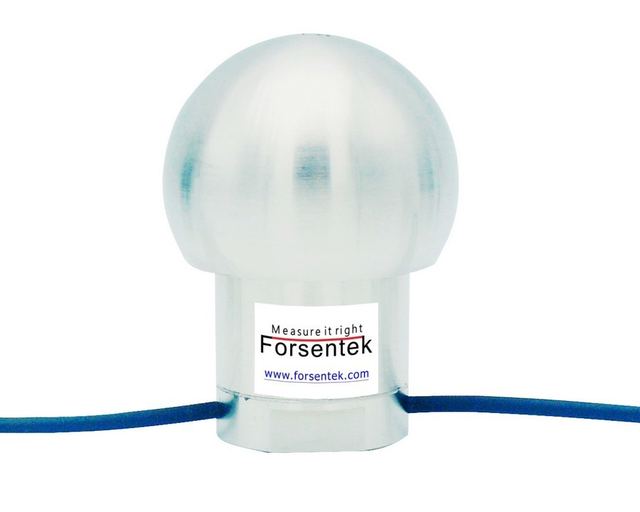

Gear Lever Load Cell 1kN 500N 200N 100N Stick Shift Force Sensor
Model F2Q
Overview
Gear Lever Load Cell 1kN 500N 200N 100N Stick Shift Force Sensor supplied by Forsentek Co. Limited. Key published specifications: Channel Fx/Fy; Type 2-axis Force Sensor; Capacity 10kg 20kg 50kg 100kg; Part No. Capacity. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Channel | Fx/Fy |
|---|---|
| Type | 2-axis Force Sensor |
| Capacity | 10kg 20kg 50kg 100kg |
| Part No. | Capacity |
| F2Q-100kg | 100kgf |
| Rated Capacity | 10kg 20kg 50kg 100kg (100N 200N 500N 1000N) |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of full scale |
| Hysteresis | ±0.3% of full scale |
| Non-repeatability | ±0.2% of full scale |
| Creep(5min) | ±0.05% of full scale |
| Safe overload | 150% of full scale |
| Ultimate overload | 200% of full scale |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift on zero | ±0.02% R.O./ o C |
| Temperature shift on span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 350±30 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
