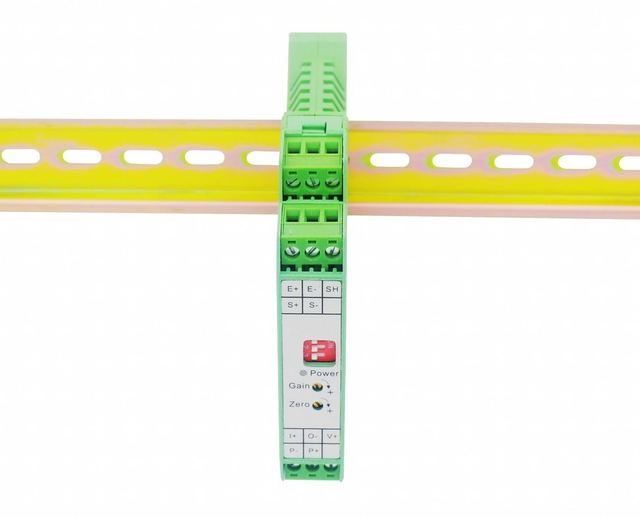

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
Model FSD
Overview
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA supplied by Forsentek Co. Limited. Key published specifications: Output -10-10V/4-20mA/0-20mA; Input 1.0mV/V~3.0mV/V; Power 12~26V DC; Isolation voltage 1500V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output | -10-10V/4-20mA/0-20mA |
|---|---|
| Input | 1.0mV/V~3.0mV/V |
| Power | 12~26V DC |
| Isolation voltage | 1500V |
| Power supply | 12~26V DC DC |
| Power consumption | <1.2W |
| Output signal | -10-10V,4-20mA,0-20mA |
| Excitation for load cell | 5V DC |
| Applicable sensitivity | 1.0mV/V~3.0mV/V |
| Bandwidth | 100Hz/3kHz |
| Working temperature | 0...+50 o C |
| Material of housing | Plastic |
| Ingress protection | IP20 |
| Net weight | 0.1kg |
| Installation | 35mm DIN rail |
