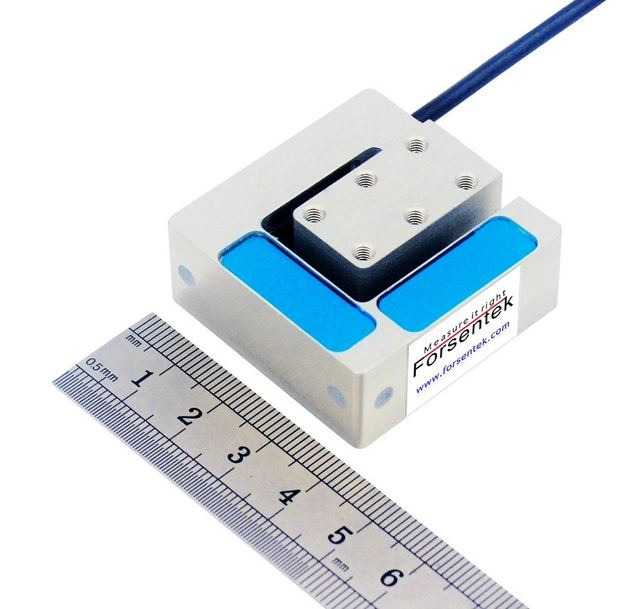

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg
Model F3W
Overview
Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg supplied by Forsentek Co. Limited. Key published specifications: Type Triaxial Load Cell; Force Range 10N 20N; Output Analog Sensor; Ordering code Capacity. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Triaxial Load Cell |
|---|---|
| Force Range | 10N 20N |
| Output | Analog Sensor |
| Ordering code | Capacity |
| Sensitivity | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(3min) | ±0.2% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift on zero | ±0.03% R.O./ o C |
| Temperature shift on span | ±0.02% R.O./ o C |
| Input resistance | 170±10 ohms |
| Output resistance | 500±20 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP40 |
| Material of element | Aluminum |
| Load Direction | Fx/Fy/Fz |
