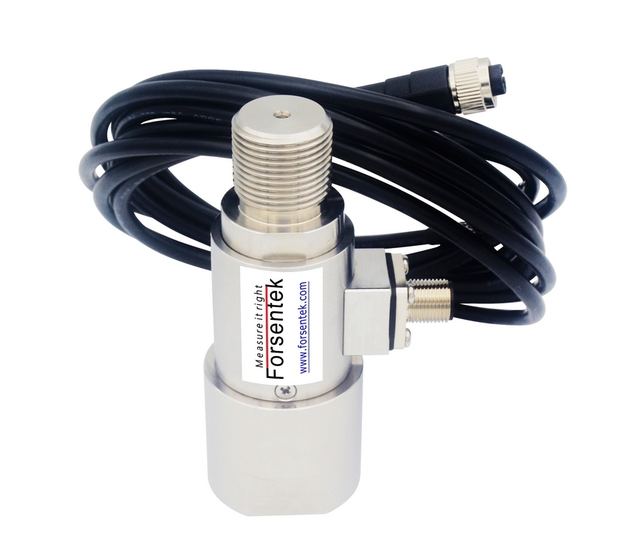

Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Model FLXN
Overview
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450 supplied by Forsentek Co. Limited. Key published specifications: Structure Rod End Force Sensor; Capacity 5 Klb 10 Klb 20 Klb; Force Direction Tension And Compression; Rated output 2.0 mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Structure | Rod End Force Sensor |
|---|---|
| Capacity | 5 Klb 10 Klb 20 Klb |
| Force Direction | Tension And Compression |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.5% of full capacity |
| Hysteresis | ±0.5% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.2% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+60 o C |
| Operating temperature | -20...+80 o C |
| Temperature shift zero | ±0.01% R.O./ o C |
| Temperature shift span | ±0.03% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3.3*3000mm 4-core shielded |
| Wiring code @ Tension | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Thread | 1-14 UNS |
