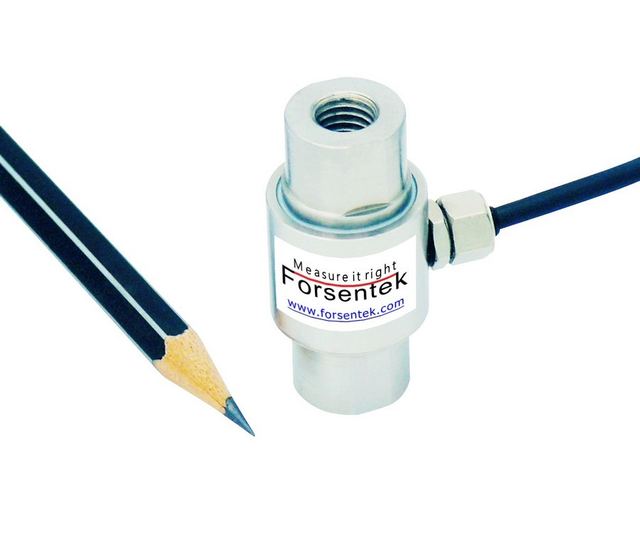

Miniature Tension Load Cell With M10/M8/M6/M5/M4 Mounting Hole
Model FLRA
Overview
Miniature Tension Load Cell With M10/M8/M6/M5/M4 Mounting Hole supplied by Forsentek Co. Limited. Key published specifications: Type Female Threaded Load Cell; Load Range 100N 200N 500N 1kN 2kN 5kN 10kN; Connection M4/M5/M6/M8/M10 Internal Thread; Rated output 1.5 mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Female Threaded Load Cell |
|---|---|
| Load Range | 100N 200N 500N 1kN 2kN 5kN 10kN |
| Connection | M4/M5/M6/M8/M10 Internal Thread |
| Rated output | 1.5 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Creep(3min) | ±0.05% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Cable | Ø3*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Load Direction | Tension/Compression |
