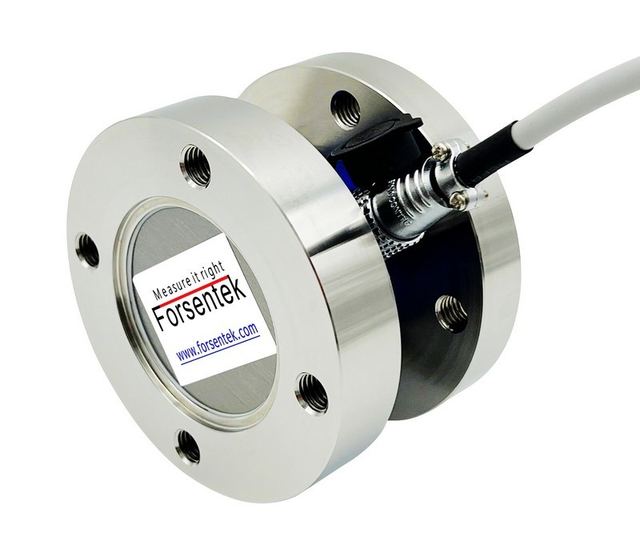

2-axis Load Cell Biaxial Force Sensor Thrust Torque Measurement
Model FT2E
Overview
Forsentek Co. Limited lists 2-axis Load Cell Biaxial Force Sensor Thrust Torque Measurement under Force Measurement. The listing gives type Biaxial Load Cell, output Analog Sensor and connection Flange To Flange.
Technical specifications
| Type | Biaxial Load Cell |
|---|---|
| Output | Analog Sensor |
| Connection | Flange To Flange |
| Torque Range | 10/20/30/50/100Nm |
| Force Range | 1/2/3/5/10kN |
| Torque capacity | 10Nm 20Nm 30N*m 50Nm 100Nm |
| Force capacity | 1kN 2kN 3kN 5kN 10kN |
| Rated output | >0.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | 0...+40 o C |
| Operating temp. | -10...+60 o C |
| Temp. shift zero | ±0.03% R.O./ o C |
| Temp. shift span | ±0.03% R.O./ o C |
| Input resistance | 380/700 ohms |
| Output resistance | 350/700 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Torque | Brown--E+ Orange--E- Blue--S+ Gray--S- |
