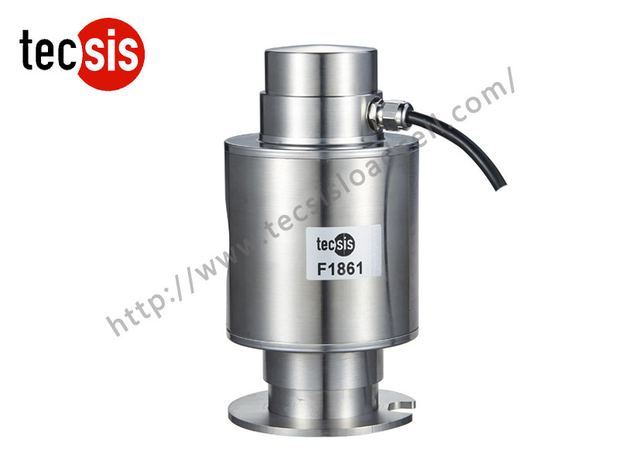

Alloy Steel Waterproof Truck Scale Load Cell For Force Measurement
Model F1861
Overview
Alloy Steel Waterproof Truck Scale Load Cell For Force Measurement, listed by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. The listing gives repeatability 0.02%F.S., material Alloy Steel and capacity 10t~50t.
Technical specifications
| Repeatability | 0.02%F.S. |
|---|---|
| Material | Alloy Steel |
| Capacity | 10t~50t |
| Oem/Odm | Acceptable |
| Protection Class | IP67 |
| 3 wires | 0~5V, 1~5V, 0~10V |
| 4 wires | 0~10mV |
| Comprehensive accuracy | 0.25~0.5% F.S. |
| Power supply | 5~10VDC( Sensor) 12~30VDC(Transmitter) |
| Medium temperature | -20ºC~85ºC -20ºC~150ºC(Option) |
| Ambient temperature | -20ºC~85ºC |
| Load resistance | Voltage type ≥50kΩ Current type ≤800Ω |
| Insulation | ≥5000MΩ / 50VDC |
| Response time | 10ms |
| Long term stability | 0.1% F.S./ Year |
| Electrical interface | M12×1 Direct wireØ5x1500mm Hessman lines Customized |
| Thread connection | M12×1,Check the selection table |
| Standard | carton |
| Model | P3805 |
| Technical parameters | Specifications |
