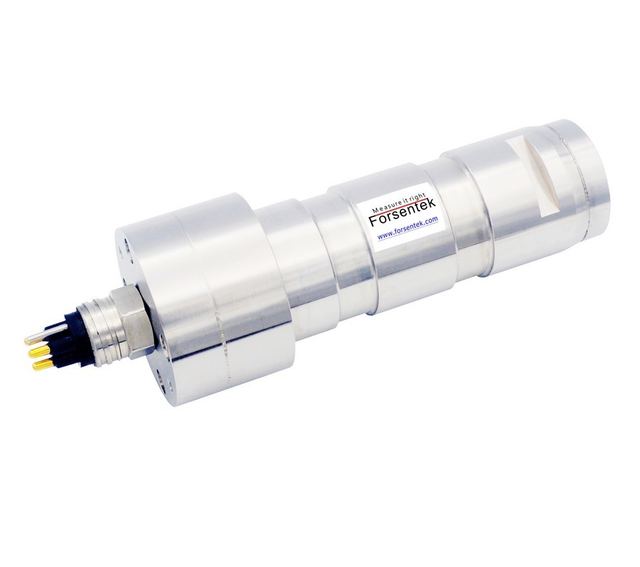

Underwater Pin Load Cell
Model LPMD
Overview
Underwater Pin Load Cell, listed under Load Cells by Forsentek Co. Limited. The listing gives output Analog Sensor, capacity 3t and submersible depth 1000 Meters.
Technical specifications
| Output | Analog Sensor |
|---|---|
| Capacity | 3t |
| Submersible Depth | 1000 Meters |
| Rated capacity | 3000kg ( Customizable ) |
| Rated output | 1.0 mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.5% F.S. |
| Hysteresis | ±0.5% F.S. |
| Non-repeatability | ±0.2% F.S. |
| Creep(3min) | ±0.1% F.S. |
| Safe overload | 150% F.S. |
| Ultimate overload | 250% F.S. |
| Compensated temp. | 0...+40 o C |
| Operating temp. | -20...+65 o C |
| Temp. shift zero | ±0.02% F.S./ o C |
| Temp. shift span | ±0.02% F.S./ o C |
| Input resistance | 750±100 ohms |
| Output resistance | 700±100 ohms |
| Insulation resistance | >2000M ohms |
| Material of element | Stainless steel |
