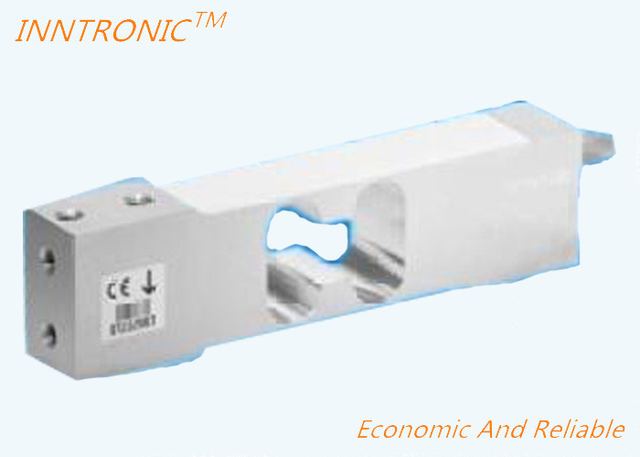

7kg platform load cell
Model IN-SP4MC6MR
Overview
7kg platform load cell, listed under Load Cells by Innovation Electronic Co.,Ltd. Published figures include pattern Single Point Load Cell, capacity 7 To 36 Kg and output 2mv/v.
Technical specifications
| Pattern | Single Point Load Cell |
|---|---|
| Capacity | 7 To 36 Kg |
| Output | 2mv/v |
| Material | Aluminum Load Cell |
| Application | Multi Range |
| Interchangeable Brand | HBM |
| IP Protection Standard | IP67 |
| Accuracy | C3 |
| Type | Single Point Load Cell |
