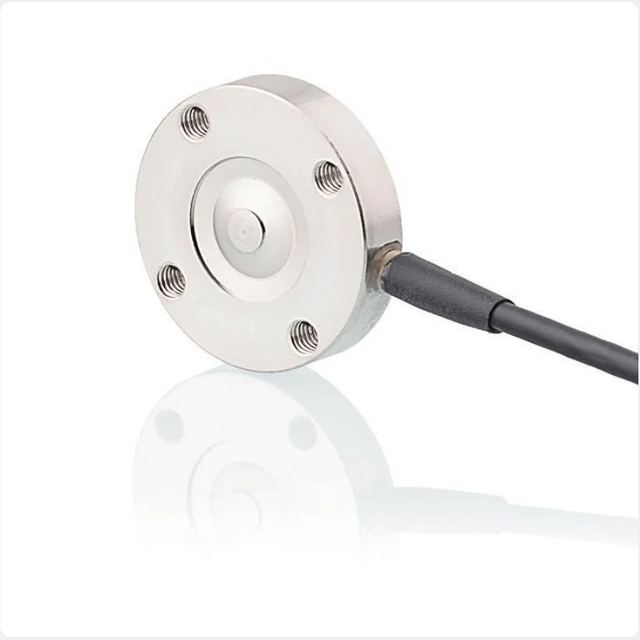

Mini Load Cell
Overview
Mini Load Cell supplied by Dongguan Bo Ruge Intelligent Technology Co., Ltd. Listed under Load Cells. Key published specifications: Capacity 0~10,20,30,50,100kg; Material Stainless Steel; Rated Output 1.5±10%mV/V; Zero Balance ±2% F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 0~10,20,30,50,100kg |
|---|---|
| Material | Stainless Steel |
| Rated Output | 1.5±10%mV/V |
| Zero Balance | ±2% F.S. |
| Non-linearity | ±0.3% F.S. |
| Hysteresis | ±0.3% F.S. |
| Repeatability | ±0.3% F.S. |
| Creep(30min) | ±0.05% F.S. |
| Temp. Effect on Output | ±0.1% F.S./10℃ |
| Temp. Effect on Zero | ±0.1% F.S./10℃ |
| Insulation | ≥5000MΩ/100VDC |
| Recommended Excitation | 3~5V |
| Cable Specifications | Φ2x3m |
| Protection Class | IP65 |
