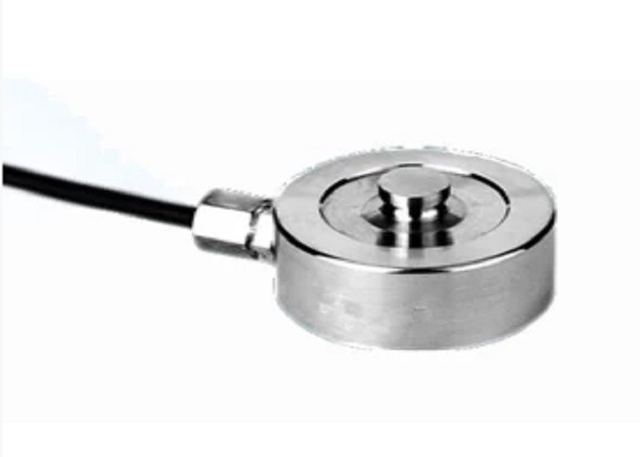

HZFS-018 2T Weighing Load Cell round Measure Force Mini Weight force Sensor Stainless Steel 2.5-5V
Model HZFS-018
Overview
HZFS-018 2T Weighing Load Cell round Measure Force Mini Weight force Sensor Stainless Steel 2.5-5V supplied by Innovation Electronic Co.,Ltd. Listed under Load Cells. Key published specifications: Rated Capacities(Emax) 5~2000kg; Recommended Excitation 2.5-5V; Material Stainless Steel; Application Small Space Installation. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Capacities(Emax) | 5~2000kg |
|---|---|
| Recommended Excitation | 2.5-5V |
| Material | Stainless Steel |
| Application | Small Space Installation |
| Capacity | 5~2000kg |
| Rated Output | 1.0-1.5mV/V |
| Zero Balance | ±2%F.S. |
| Insulation | ≥5000M Ω/100VDC |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Maximum Excitation | 5V |
| Repeatability | 0.5%F.S. |
| Compensated Temp Range | -10~60 ºC |
| (30 )Creep (30min) | 0.1%F.S. |
| Operating Temp Range | -20~80 ºC |
| Temp Effect on Output | 0.1%F.S./10 ºC |
| Temp Effect on Zero | 0.1%F.S./10 ºC |
| Cable Size | φ(2-3) x 3m |
| Type | Mini Load Cell |
| output | 1.5-2.0mV/V |
