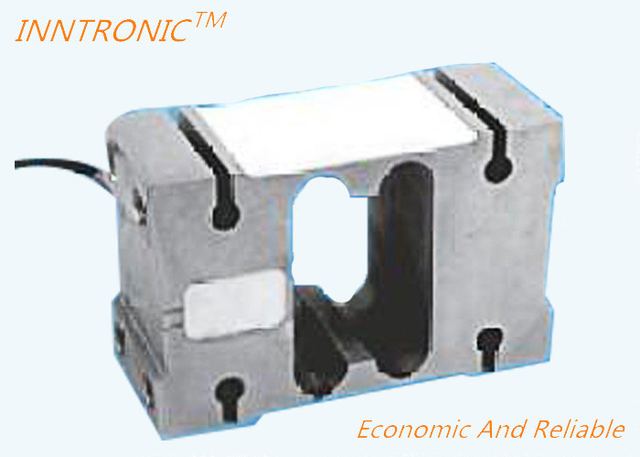

IN-ILGB 50kg to 2t single point load cell aluminum material for platform scale 1.2*1.2m
Model IN-ILGB
Overview
IN-ILGB 50kg to 2t single point load cell aluminum material for platform scale 1.2*1.2m, listed by Innovation Electronic Co.,Ltd. Published figures include pattern Single Point Load Cell, output 2mv/v and material Alloy Steel.
Technical specifications
| Pattern | Single Point Load Cell |
|---|---|
| Output | 2mv/v |
| Material | Alloy Steel |
| Application | All Kinds Of Platform Scale |
| Interchangeable Brand | HBM |
| IP Protection Standard | IP65 |
| Accuracy Grade | C3 |
| Cable Length | 3m |
| Rated load | 50,100,150,200,250,300,500,750kg,1t,2t |
| Sensitivity | 2.0+0.2mV/V |
| Safe load limit | 150%F.S |
| Non-linearity | ±0.03%F.S |
| Breaking load | 200%F.S |
| Hysteresis error | ±0.03%F.S |
| Nominal of range excitation | 10～12V DC |
| Creep(30min) | ±0.02%F.S |
| Protection Class | IP65 |
| TC O | ±0.02%F.S/10℃ |
| Tc Span | ±0.02%F.S/1O℃ |
| Cable | Length=3m |
| Max.platform size | 400×400mm(50~200kg) |
| Type | Single Point Load Cell |
| Capacity | 0.2 to 3 kg |
