Overview

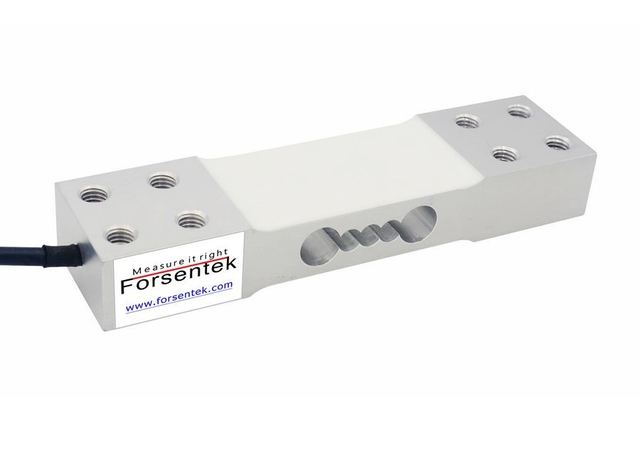

RS485 Load Cell With Digital Output For Smart Warehouse Management, from Forsentek Co. Limited. Published figures include type Digital Load Cell, capacity 40kg 60kg 100kg 150kg and structure Single Point Load Cell.

Technical specifications

Type	Digital Load Cell
Capacity	40kg 60kg 100kg 150kg
Structure	Single Point Load Cell
Output	RS485/RS232
Protocol	Modbus RTU
Rated capacity	40kg 60kg 100kg 150kg
Excitation	5-12V DC
Nonlinearity	±0.02% R.O.
Hysteresis	±0.02% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40 o C
Operating temperature	-20...+60 o C
Temperature shift zero	±0.02% R.O./10 o C
Temperature shift span	±0.02% R.O./10 o C
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø5*5 00mm 4-wire shielded
Wiring code	Red--Power+ Black--Power- Green--RS485 A White--RS485 B
