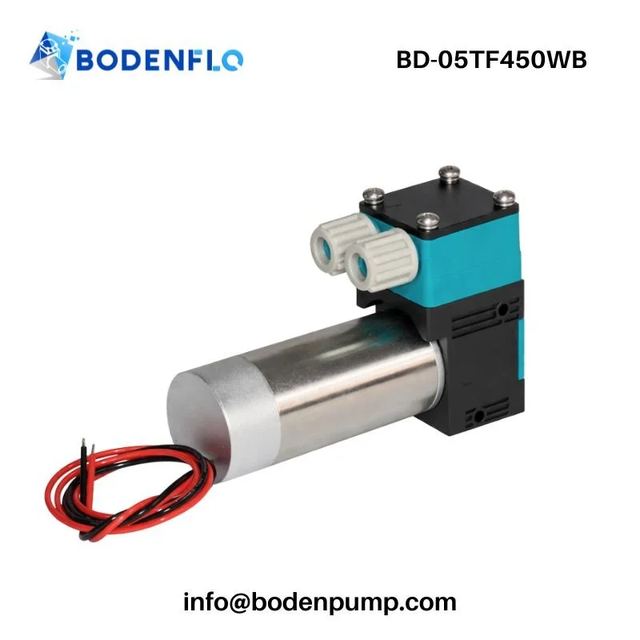

Precision Liquid Pump 450 mL/min Brushed Coding Machine Pump BD-05TF450WB BODENFLO
Model BD-05TF450WB
Overview
Precision Liquid Pump 450 mL/min Brushed Coding Machine Pump BD-05TF450WB BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Max Flow 450 mL/min (water), 4 L/min (gas); Max Vacuum –60 kPa; Max Pressure 2.5 bar (water), 1 bar (gas); Max Power 7 W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max Flow | 450 mL/min (water), 4 L/min (gas) |
|---|---|
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Max Power | 7 W |
| Weight | 200 g |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Free Water Flow | 450 mL/min (0.119 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Recommended Tubing Size | ID 4 mm, OD 6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Item | Customization Options |
| Tubing | ID/OD adjustment for flow matching |
| Mounting | Customized bracket or hole pattern |
| Flow / Pressure | Application-based performance calibration |
