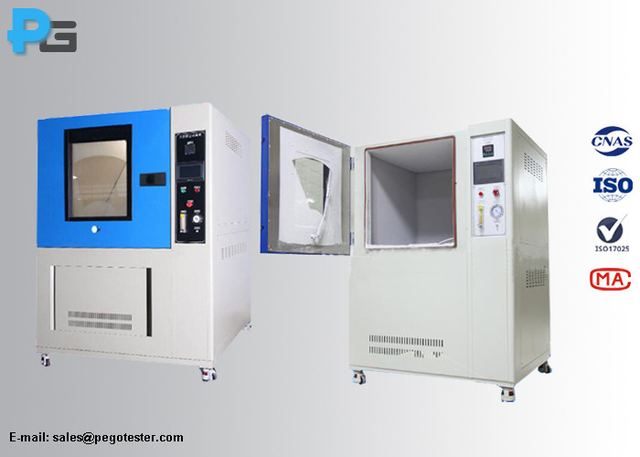

PLC Control Environment Test Equipment IP5X/IP6X Dust Ingress Protection For Auto Parts
Model IP56X
Overview
PLC Control Environment Test Equipment IP5X/IP6X Dust Ingress Protection For Auto Parts supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60529; Material Stainless Steel; Application Enclosure For IP5X And IP6X Testing. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60529 |
| Material | Stainless Steel |
| Application | Enclosure For IP5X And IP6X Testing |
| Working Power | 380V/50Hz |
| Control Sysetem | LCD Touch Screen+touch Screen |
| Temperature range | RT~+70℃ |
| Airflow velocity | ≤ 2.5m/s |
| Time range | 1S~999H (adjustable) |
| Vibration time | 1S~999H (adjustable) |
| Dust concentration | 2~4kg/m 3 |
| Sand and dust | Dry powder, portland cement paste |
| Power socket for EUT | IP66, 220V/16A |
| Circulatory system | Dust recycling |
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H. |
| Power supply | 2KW, AC220V±10%, 50Hz |
| Temperature | 15℃～35℃, humidity:≤85%R.H. |
| Outer size | 2100*2100*2150mm (Customizable) |
| Inner Size | 1800*1800*2000mm (Customized) |
