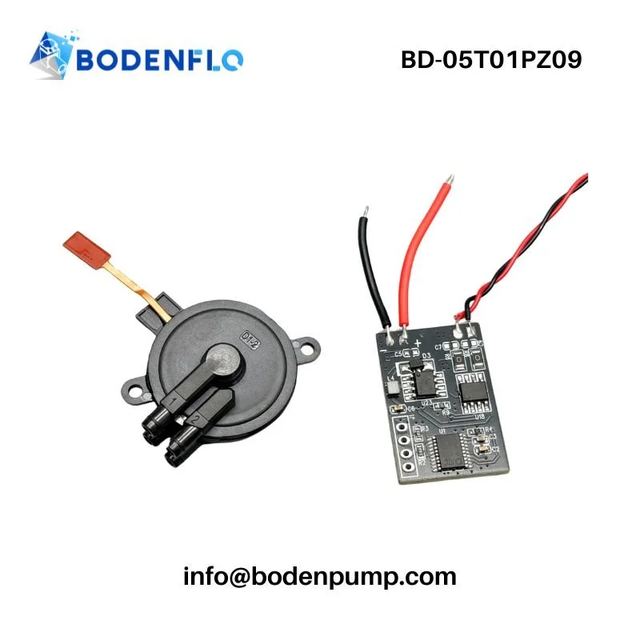

Piezoelectric Micropump 2LPM 5.3g Pneumatic Micropump BD-05T01PZ09 BODENFLO
Overview
Piezoelectric Micropump 2LPM 5.3g Pneumatic Micropump BD-05T01PZ09 BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Pump Driving Voltage 18–25V DC; Drive Frequency 19–23 kHz; Resonant Frequency 22.20 kHz; Flow Rate @ 20V DC ≥2 L/min in parallel; ≥0.8 L/min in series. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pump Driving Voltage | 18–25V DC |
|---|---|
| Drive Frequency | 19–23 kHz |
| Resonant Frequency | 22.20 kHz |
| Flow Rate @ 20V DC | ≥2 L/min in parallel; ≥0.8 L/min in series |
| Output Pressure @ 20V DC | ≥15 kPa in parallel; ≥30 kPa in series |
| Ambient Temperature | 1–45°C |
| No-Load Flow Rate | 2.0 L/min @ 20 VDC |
| Parallel Flow Rate | ≥2 L/min |
| Series Flow Rate | ≥0.8 L/min |
| Parallel Pressure | ≥15 kPa |
| Series Pressure | ≥30 kPa |
| Recommended Surface Temperature | ≤60°C |
| Weight | 5.3 g |
| Housing | PC (Polycarbonate) |
| Piezoelectric Element | Piezoelectric Ceramic |
| Pump Technology | Ultrasonic Piezoelectric Airflow Generation |
| Operating Environment | Clean, Dry Air |
| Waterproof Rating | Not Waterproof |
| Customization Item | Available Options |
| Wiring Length | Custom wire length available |
| Connector Type | OEM-specific connectors available |
| Application | Microfluidic pressure control module |
