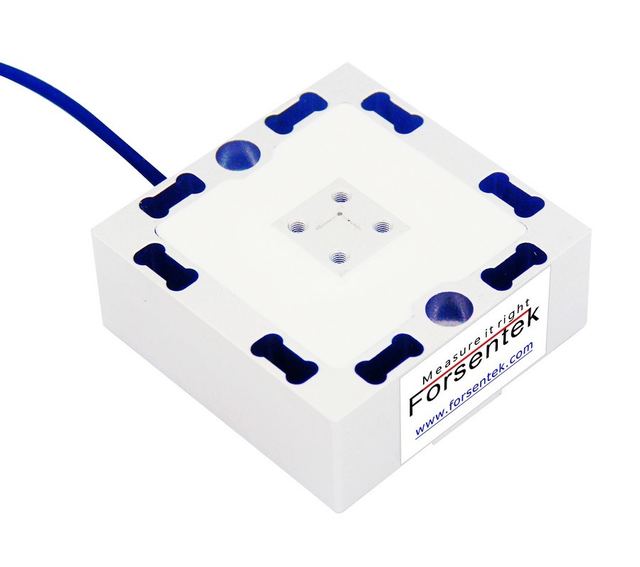

Multi-axis Force Sensor 100N 200N 300N 500N 3-Axis Load Cell 3A60A
Model F3U
Overview
Multi-axis Force Sensor 100N 200N 300N 500N 3-Axis Load Cell 3A60A supplied by Forsentek Co. Limited. Key published specifications: Type 3D Load Cell; Force Range 100/200/300/500N; Output Analog Sensor; Ordering code Capacity. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | 3D Load Cell |
|---|---|
| Force Range | 100/200/300/500N |
| Output | Analog Sensor |
| Ordering code | Capacity |
| Rated Capacity | 100N 200N 300N 500N |
| Sensitivity | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.3% of the capacity |
| Hysteresis | ±0.3% of the capacity |
| Non-repeatability | ±0.1% of the capacity |
| Creep(3min) | ±0.2% of the capacity |
| Safe overload | 150% of the capacity |
| Ultimate overload | 200% of the capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift on zero | ±0.03% R.O./ o C |
| Temperature shift on span | ±0.02% R.O./ o C |
| Input resistance | 233±30 ohms |
| Output resistance | 700±20 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | 100N/200N: Aluminum 300N/500N: Stainless steel |
| Load Axis | Fx/Fy/Fz |
