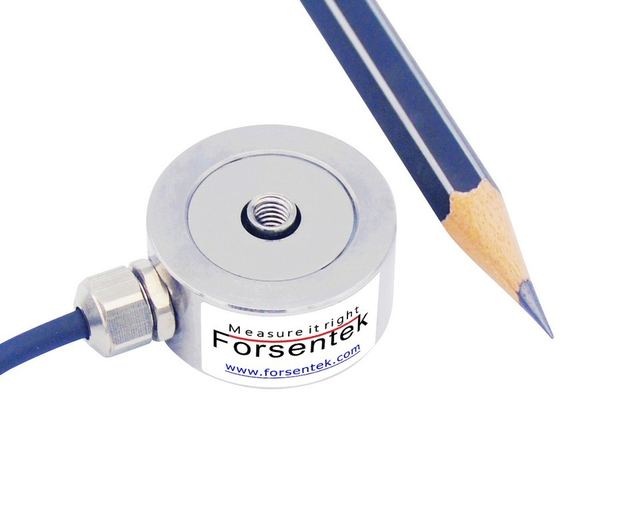

Miniature Tension And Compression Load Cell With M4 Theaded Hole
Model FCU
Overview
Miniature Tension And Compression Load Cell With M4 Theaded Hole supplied by Forsentek Co. Limited. Key published specifications: Measure Direction Compression And Traction; Force Range 100N 200N 500N 1kN; Material Stainless Steel; Connection M4 Tapped Hole. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Measure Direction | Compression And Traction |
|---|---|
| Force Range | 100N 200N 500N 1kN |
| Material | Stainless Steel |
| Connection | M4 Tapped Hole |
| Output | Analog Load Cell |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.03% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
