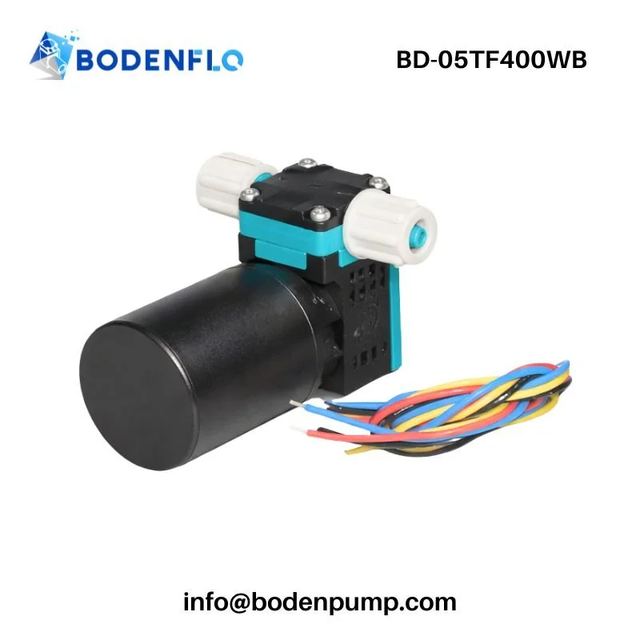

Miniature Gas-Liquid Mixed Pump 400 mL/min Solvent Ink Pump BLDC BD-05TF400WB BODENFLO
Model BD-05TF400WB
Overview
Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong lists Miniature Gas-Liquid Mixed Pump 400 mL/min Solvent Ink Pump BLDC BD-05TF400WB BODENFLO. The listing gives voltage 6 / 12 / 24 V, max flow 400 mL/min (water), 0.4 L/min (gas) and max pressure 6 bar (water), 70 kPa (gas).
Technical specifications
| Voltage | 6 / 12 / 24 V |
|---|---|
| Max Flow | 400 mL/min (water), 0.4 L/min (gas) |
| Max Pressure | 6 bar (water), 70 kPa (gas) |
| Max Gas Vacuum | –35 kPa |
| Max Power | 5 W |
| Weight | 150 g |
| Type | Micro Diaphragm Pump |
| Structure | Diaphragm Pump |
| Free Water Flow | 400 mL/min (0.106 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 4 m |
| Free Gas Flow | 0.4 L/min (0.014 cfm) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Speed Control Range | 0.5 V to 4.5 V |
| Recommended Tubing Size | ID4mm, OD6mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
| Customization Item | Available Options |
| Branding | OEM label and product marking |
